Heavy Duty Air Winch Model A2 - 7500 lbs Capacity
Heavy Duty Air Winch Model A2 - 7500 lbs Capacity
SKU:RIG-5c0eed
Heavy Duty Air Winch Model A2 - 7500 lbs Capacity, Self-locking Worm Gear, Safety Brake, All-Weather Use
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy Duty Air Winch Model A2 - 7500 lbs Capacity
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch Model A2 - 7500 lbs Capacity
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

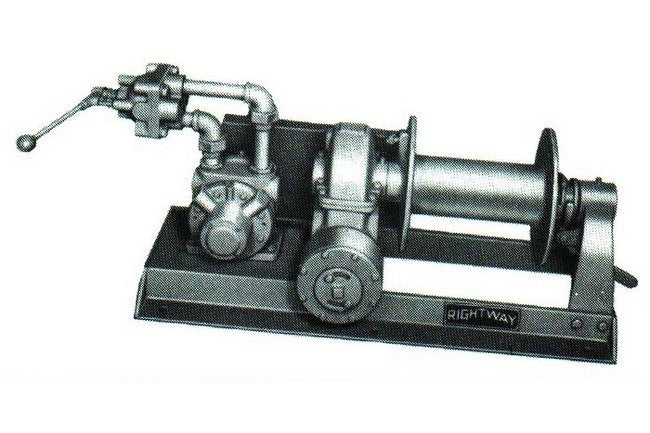

The Heavy Duty Air Winch Model A2 is designed for rugged applications, featuring a self-locking worm gear reduction with oilbath lubrication for enhanced durability. This winch is equipped with a safety brake for automatic mechanical load control and a steel fabricated base ensuring maximum strength. With a running capacity of 7500 lbs, line speed of 15 FPM, and a 5 to 1 structural safety factor, this winch is ideal for lifting and pulling tasks. Additional features include a free spooling drum, all-weather usability, and various mounting options for versatility.
Product Specifications
Specifications Air Requirement
160 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
150 ft.
Specifications Full Drum
300 ft.
Specifications Line Speed
15 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
675 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
7500
Specifications Winch Height
18 inches
Specifications Winch Length
43 inches
Specifications Winch Width
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
