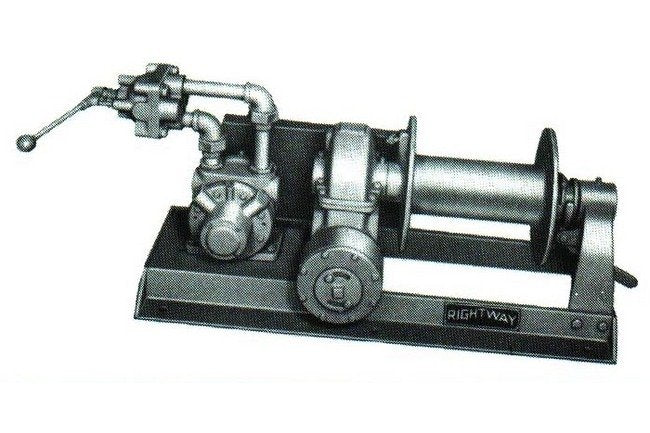

The Model A2 Heavy Duty Air Winches are built to withstand rugged conditions with a free spooling drum, self-locking worm gear reduction, and automatic safety brake. With a running capacity of 1500 lbs and a line speed of 25 FPM, these winches are ideal for lifting and pulling tasks. The all-steel fabricated winch base ensures maximum durability, meeting a minimum 5 to 1 structural safety factor. Additionally, the winches come with standard features like oil bath lubrication and all-weather suitability, making them versatile and reliable for various applications.
Product Specifications
Specifications Air Requirement
60 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
250 ft.
Specifications Full Drum
800 ft.
Specifications Line Speed
25 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
370 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
1500
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
