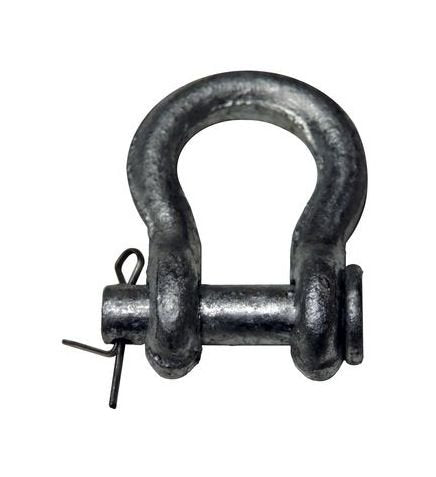

Heavy-Duty Anchor Shackles Galvanized 1-Inch Round Pin

Heavy-Duty Anchor Shackles Galvanized 1-Inch Round Pin

SKU:WIR-7618d5

Heavy-Duty 1-Inch Anchor Shackle for lifting and towing, meets Federal Specification RR-C-271D. 8 1/2 tons WLL.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Heavy-Duty Anchor Shackles Galvanized 1-Inch Round Pin

Heavy-Duty Anchor Shackles Galvanized 1-Inch Round Pin

$34.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Anchor Shackles Galvanized 1-Inch Round Pin

Heavy-Duty Anchor Shackles Galvanized 1-Inch Round Pin

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Anchor Shackles Round Pin Hot Dip Galvanized Drop Forged is designed to meet the stringent Federal Specification RR-C-271D, ensuring exceptional strength and durability. With a working load limit of 8 1/2 tons and an alloy pin for added security, this shackle is quenched and tempered to withstand tough lifting and towing tasks. Its proof load is 2.2 times the working load limit, while the ultimate load is 6 times the working load limit, guaranteeing reliable performance under pressure. Ideal for wire rope loops, this shackle is a dependable choice for industrial and government applications.

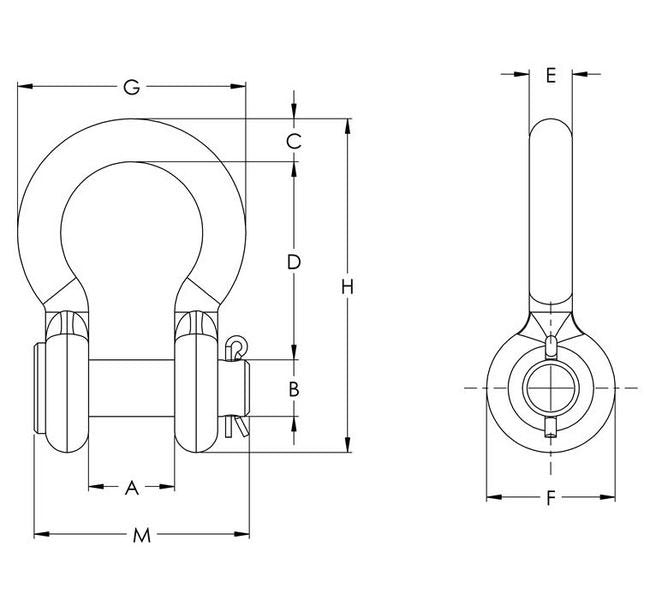

Product Specifications

Specifications A In
1.69
Specifications B In
1.13
Specifications C In
1.06
Specifications D In
3.75
Specifications E In
1
Specifications F In
2.38
Specifications G In
4.69
Specifications H In
6.56
Specifications M In
5.07
Specifications Nominal Size In
1
Specifications Weight Lbs
5
Specifications Wll Tons
8 1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
