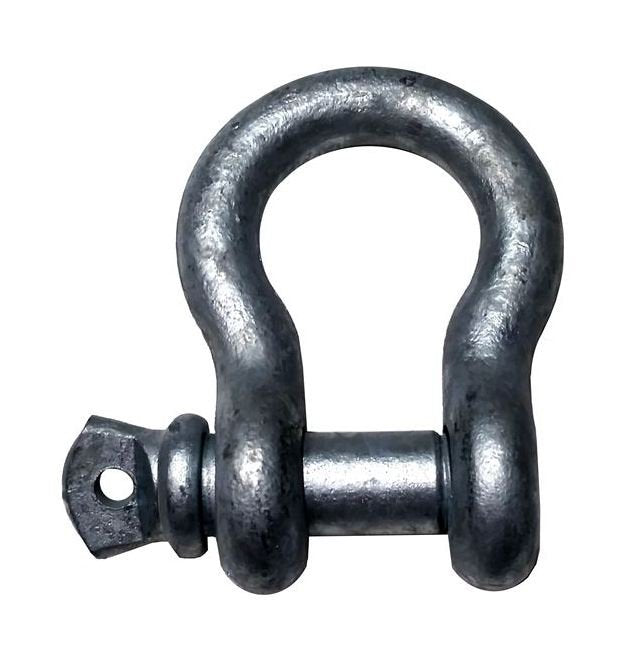

Heavy-Duty Anchor Shackles Galvanized Drop Forged

Heavy-Duty Anchor Shackles Galvanized Drop Forged

SKU:WIR-b665a4

High-quality Anchor Shackles for heavy lifting & towing operations, meets Federal Spec RR-C-271D. 1.5" size, 17-ton WLL.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

Heavy-Duty Anchor Shackles Galvanized Drop Forged

Heavy-Duty Anchor Shackles Galvanized Drop Forged

$59.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Anchor Shackles Galvanized Drop Forged

Heavy-Duty Anchor Shackles Galvanized Drop Forged

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Anchor Shackles are designed to meet the exacting standards of Federal Specification RR-C-271D, Type IV A, Grade A, Class 2. Crafted from high-quality materials, these shackles feature a quenched and tempered alloy pin for superior strength. With a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, these shackles ensure reliability and safety in lifting and towing operations. The 1.5-inch nominal size and 17-ton working load limit make them ideal for heavy-duty applications.

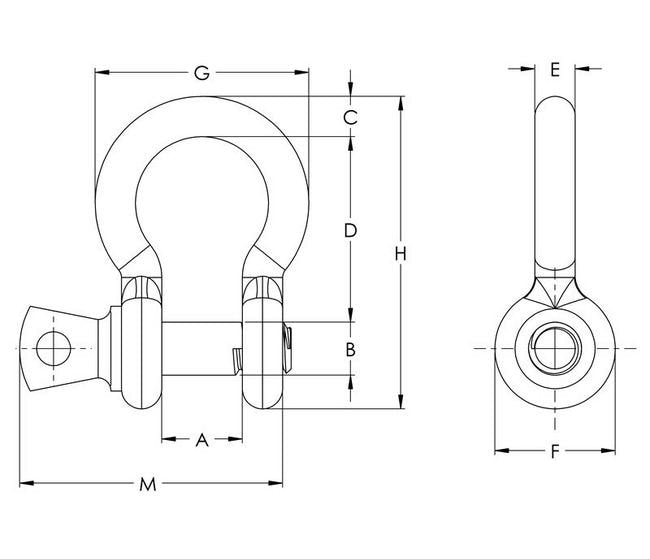

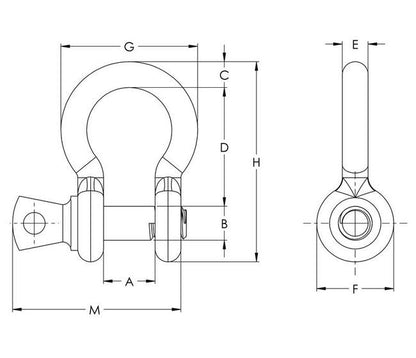

Product Specifications

Specifications A In
2.38
Specifications B In
1.63
Specifications C In
1.62
Specifications D In
5.75
Specifications E In
1.54
Specifications F In
3.63
Specifications G In
6.88
Specifications H In
10
Specifications M In
7.35
Specifications Nominal Size In
1.5
Specifications Weight Lbs
17.2
Specifications Wll Tons
17
CAGE
0T9L4
NAICS
332999
PSC
5340
