Heavy-Duty Automatic Turntable Stretch Wrapping Machine - PAC-SERIES
Heavy-Duty Automatic Turntable Stretch Wrapping Machine - PAC-SERIES
SKU:AUT-5596db
Maximize efficiency and durability with our PAC-SERIES Heavy-Duty Automatic Turntable Wrapping Machine - ideal for high-speed production lines.
Regular price
$9,500.00
Regular price
Sale price
$9,500.00
Unit price
per
Initiate Order
Heavy-Duty Automatic Turntable Stretch Wrapping Machine - PAC-SERIES
$9,500.00
Quantity: 1
Claim Your Seller Account
Heavy-Duty Automatic Turntable Stretch Wrapping Machine - PAC-SERIES
$9,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

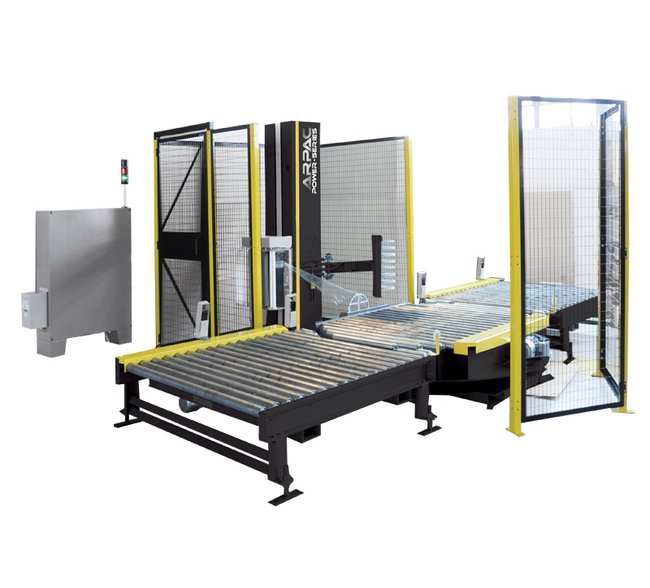

The Heavy-Duty Automatic Turntable Stretch Wrapping Machine from the PAC-SERIES offers a robust solution for maximizing stretch film usage and ensuring optimal load unitization. Constructed with heavy-duty reinforced structural steel, this American-made wrapping system features a non-corrosive powder coat finish for long-lasting reliability. With a range of advanced features including a top over-wrap control, adjustable wrap counters, and an Allen-Bradley® HMI for seamless operation, this system is designed for high-speed conveyorized production lines, providing superior performance 24/7. Ideal for institutional buyers seeking efficiency, durability, and versatile customization options.
Product Specifications
Additional Information Additional Information

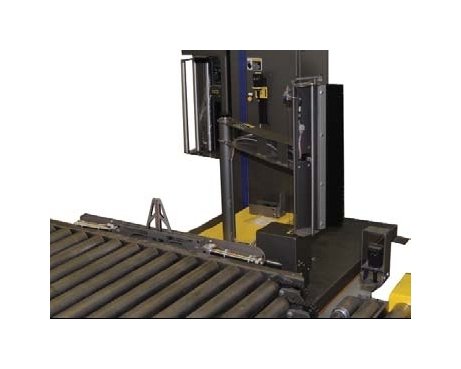

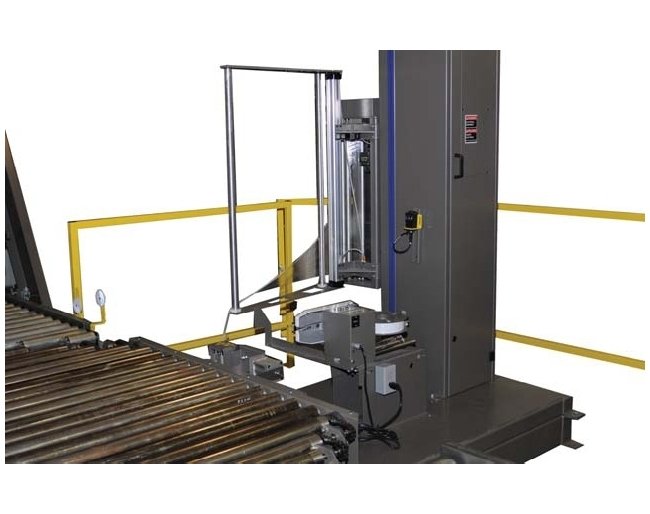

At the end of the wrap cycle, the wipe arm aligns the film with the clamp arm. Once the clamp arm captures the film, the hot wire cuts the film and the wipe arm makes a secondary motion, wiping the film onto the load to prevent film tails from unraveling. Rugged power roller conveyors are used for passing loads through the PAC-SERIES wrap zone. These conveyors are driven by ANSI chains with sprocket guarding, and are guarded with heavy gauge formed sheet metal. The PAC-SERIES can be manufactured with several performance enhancements. The optional TIE-GR® Film Tail Handling System eliminates film tails by securing the tail to the pallet. The TOP PLATEN device is used to hold down unstable pallet loads during the wrapping sequence, and a Top Sheet Dispenser covers the top of the pallet with film, for additional product protection from moisture.
Electrical Power Requirements Alternating Current Ac Voltage
220 V
Electrical Power Requirements Current
20 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
3
Features Features

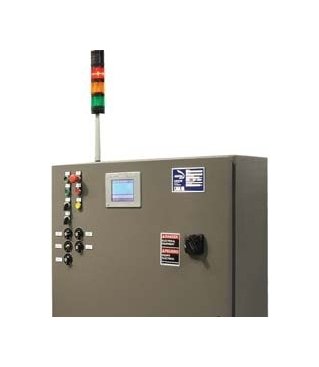

Heavy-duty reinforced structural steel construction for around-the-clock operation Powder coat finish that provides a durable scratch resistant surface and prevents corrosion Allen-Bradley® HMI for machine parameter settings, manual operations and fault diagnostics messages Electronically controlled film tension adjustment Top over-wrap control Adjustable top and bottom wrap counters (0-7) Turntable drive: 3/4 HP DC motor with ANSI 60 chain Heavy duty conveyors with 2.5" rollers, 11 gauge wall spaced at 3.75" pitch driven by "loop to loop" ANSI chain Driven turntable transition rollers for more positive pallet handling Unique 36" diameter precision steel ring turntable support for stable load entry and exit Manual conveyor controls Mechanical lock holds turntable in position during product transfer 42" safety fencing with intralocking access door Automatic film clamp and cut device with manual override control Photo electronic load height sensor that detects most dark colored loads Variable carriage speed (0-21FPM) EZ-LOAD FILM-SAVR® Powered Pre-Stretch: up to 300% with minimum neck down Film delivery system: 1/2 HP, 90 VDC motor Proximity switch dancer bar control for more reliable film feed speed control and corner compensation Dual chain carriage lift system Anti-static rollers Corner compensation UL approved components External fuses Remote NEMA 12 electrical enclosure
Options Options

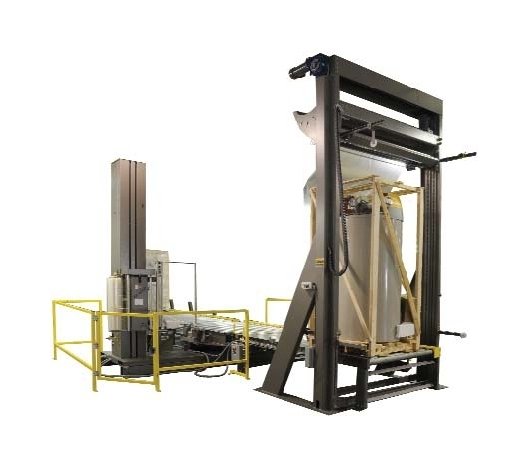

TIE-GR Tail Capture System: This patented film tail capture system is unique only to ARPAC. It allows the film to be roped and tied to the skid. With this device the tail of the film cannot come undone in transit or storage. It is ideal for cold environments when the cling tendency of the film is compromised. This also allows the load to be shipped on flatbed trailers without the worry of the film tails flying in the breeze Special Machine Paint: Exact film specification, supplier, and/or paint chip is required when placing order Increased Turntable Height: Up to 30â Top of Roller Increased Wrap Height: Up to 87â Increased Wrap Height: Up to 99â Turntable Transition Section: Each section allows the load to be transferred smoothly from the squared off end of the conveyor section to the round turntable conveyor. One assembly is required for each transfer point. Reverse Flow Direction: Changes product flow direction (std. left to right) to right to left Gravity/Exit Conveyor Photo Eye: Addition of this photo eye allows the turntable to discharge loads when photo eye light beam is not blocked Variable Speed Conveyor: Upgrade to electrical package that allows conveyor speed to be changed by turn of a knob on the electrical panel (per section) Reversing Conveyor: Upgrade to electrical package that allows conveyor to run forward or reverse at fixed speed by turn of a two way switch on the electrical panel (per section) Variable Speed Reversing Conveyor: Upgrade to electrical package that allows conveyor to run forward or reversed at variable speed (per section) (Must have reversing conveyor to work) Optional Power Supply: Step down transformer from 480/3/60 Optional Power Supply: Step down transformer from 600/3/60 Stack Light: With This option, machine status will be visible to the operator in the vicinity of the machine. This three tier stack light which mounts to the top of the main electrical enclosure also visually signals operator to attend to the machine for any of machine fault conditions 6 ft. High Safety Fencing: Upgrade to the standard safety fencing that increases height from 4â to 6â. This upgrade includes steel mesh protection that is welded to the tubular construction. Fork Truck Safety Eyes: This photo eye prevents the conveyor section from running while lift truck approaches to load or unload the conveyor section. This eye also removes the upstream clear signal from the controls. Load Detection Photo Eye: This photo eye detects load on any conveyor section. This is required for each conveyor section purchased. Wrap Nâ Weigh Conveyor: Independent Weighing Scale integrated into any 5â conveyor section. 5â Powered Conveyor Section: Heavy-duty power roller conveyor is used for loading, un-loading or staging loads through the PAC system. This conveyor has 2.5â Diameter rollers, 11 gauge wall steel tubing with 11/16â hex shafts on 3-3/4â centers with a 52â clear width. All rollers are chain driven at a rate of 35 feet per minute Standard. It comes equipped with soft start and sprocket guarding. Has structural steel frame with up to 4000lb. Max. Capacity and 18â {T.O.R.} conveyor pass height. It Includes DC drive controller. Top Sheet Dispenser Option: Powered Infeed Conveyor Special Paint For Each Conveyor Section: Exact film specification, supplier, and/or paint chip is required when placing order Increased Conveyor Height Per 5â Section: Up to 30â top of roller (per 5â conveyor section) In-Zone Automatic Top Sheet Dispenser: (Contact factory for pricing) UL® or CSA Labeled Main Electrical Cabinet: All electrical components are UL® approved. This option provides the certification of a UL approved system. Spare Parts Kit: Limit your machine down time and make life easier for your maintenance staff and machine operators by providing a comprehensive set of wear items and machine components. An itemized list is available from your ARPAC sales representative. The spare parts kit can be customized to suit your requirements. (Contact factory for pricing)
Specifications Approximate Shipping Weight
4950 lb
Specifications Compressed Air Requirements
80 psi | 3 scfm
Specifications Conveyor Speed
30 ft/s
Specifications Load Capacity
4000 lb
Specifications Load Height
24 to 65 in
Specifications Load Length
30 to 48 in
Specifications Load Width
30 to 48 in
Specifications Turntable Speed
15 rpm
