Heavy-Duty Axial Thrust Assembly
Heavy-Duty Axial Thrust Assembly
SKU:ROU-5f4b63
High-force Axial Thrust Assembly for damage-free part movement. Adjustable, sturdy, and RoHS2 compliant.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Heavy-Duty Axial Thrust Assembly
$149.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Axial Thrust Assembly
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

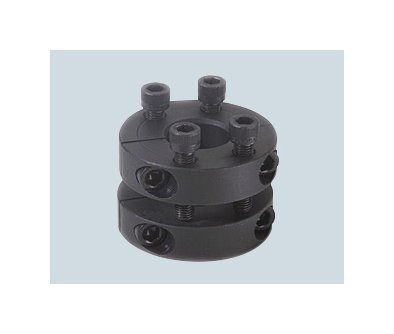

The Heavy-Duty Axial Thrust Assembly is a robust solution designed to move parts along shafts with high axial force, perfect for handling shrink fit and frozen components without causing damage. Constructed with two steel two-piece collars, this assembly is versatile, adjustable, and easy to use. Its stationary collar features four alloy thrust screws that push parts securely without compromising seals. With a thrust capacity ranging from 5,000 to 8,000 lbs., depending on size, it ensures precise and damage-free movement. Made in the USA from RoHS2 and REACH compliant materials, this assembly guarantees performance and reliability.
Product Specifications
Dimensional Attributes Fixed Collar Id
2 in
Dimensional Attributes Fixed Collar Width
0.750 in
Dimensional Attributes Maximum Axial Displacement
0.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
3/8-24 x 1
Dimensional Attributes Slide Collar Id
2 in
Dimensional Attributes Slide Collar Width
0.750 in
Specifications Alloy
1215
Specifications Approximate Weight
2.86 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
ATA0200
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786027956
