Heavy-Duty Axial Thrust Assembly ATA0012
Heavy-Duty Axial Thrust Assembly ATA0012
SKU:ROU-e06fbf
Move parts effortlessly with the Heavy-Duty Axial Thrust Assembly, ideal for high axial force applications. Made in the USA.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Heavy-Duty Axial Thrust Assembly ATA0012
$159.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Axial Thrust Assembly ATA0012
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

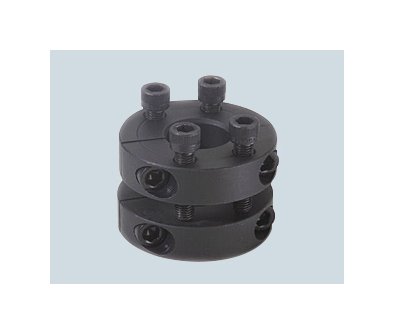

The Heavy-Duty Axial Thrust Assembly ATA0012 is a robust solution for efficiently moving parts along shafts without causing damage. Designed to exert high axial force, this assembly is perfect for handling shrink-fit or frozen parts. Its two-piece steel construction allows for versatile positioning anywhere along the shaft, preventing damage to both the shaft and the components being moved. With a thrust capacity ranging from 5,000 to 8,000 lbs., depending on size, it features precision alloy thrust screws that protect face and bearing seals from harm. Made in the USA from high-quality materials, this assembly ensures durability and reliability in industrial applications.
Product Specifications
Dimensional Attributes Fixed Collar Id
3/4 in
Dimensional Attributes Fixed Collar Width
0.625 in
Dimensional Attributes Maximum Axial Displacement
0.875 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Slide Collar Id
3/4 in
Dimensional Attributes Slide Collar Width
0.625 in
Specifications Alloy
1215
Specifications Approximate Weight
1.01 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
ATA0012
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786027901
