Heavy Duty Ball Bearing Swivel, 4-1/8 inch Length, Greasable & Sealed
Heavy Duty Ball Bearing Swivel, 4-1/8 inch Length, Greasable & Sealed
SKU:PUL-a558be
High-grade steel, 1500 lb work load, 4-1/8 inch length, screwdriver removable pins
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Ball Bearing Swivel, 4-1/8 inch Length, Greasable & Sealed
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Ball Bearing Swivel, 4-1/8 inch Length, Greasable & Sealed
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

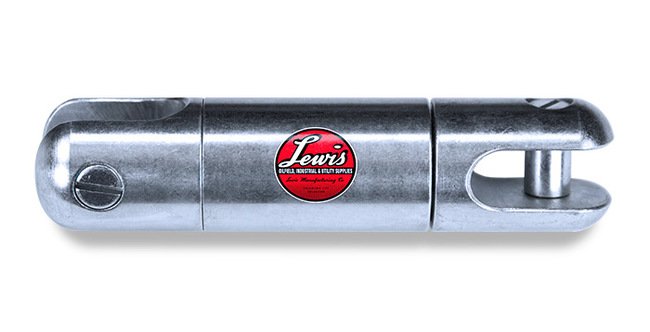

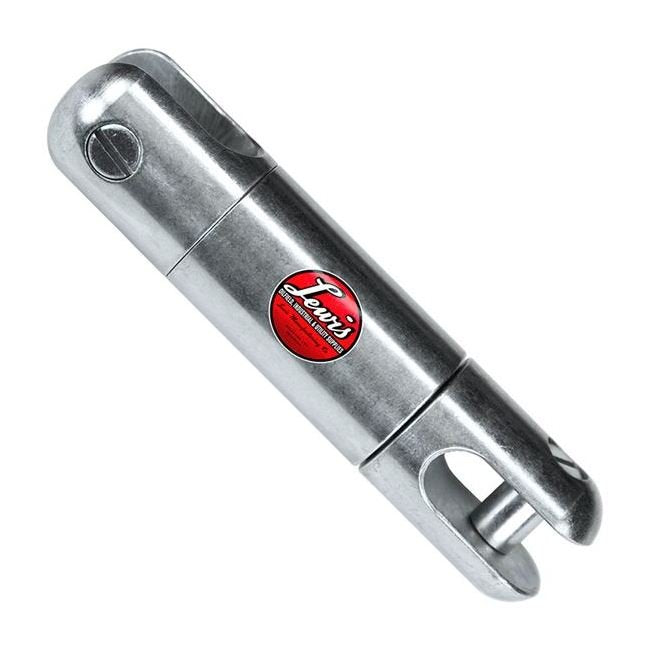

The Lewis Heavy Duty Ball Bearing Swivel, with a 4-1/8 inch length, is expertly designed for tension stringing applications, ensuring conductor stability during transmission and distribution line installations. Crafted from high-grade pre-stressed steel, this swivel can handle workloads up to 1500 lb with an ultimate tensile strength of 4500 lb. The swivel's thrust and radial bearings effectively absorb shock loads without compromising rotation. Featuring screwdriver removable pins, this swivel offers ease of maintenance and reliable performance for heavy-duty applications.
Product Specifications
Dimensions Dia D
0.875 in
Dimensions Jaw C
3/8 in
Dimensions Length A
4-1/8 in
Dimensions Pin Dia B
5/16 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Material
Steel
Specifications Patent No
5,484,220
Specifications Performance
Heavy Duty
Specifications Type
Standard & Directional Boring HD Heavy Duty Swivels
Specifications Ultimate Tensile Strength Uts
4500 lb
Specifications Work Load Wl
1500 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
