Heavy Duty Base Plate Mounted Jib Crane
Heavy Duty Base Plate Mounted Jib Crane
SKU:REL-f191b9
Heavy Duty Jib Crane for precise and stable load handling in heavy impact environments. Ideal for heavy-duty applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Heavy Duty Base Plate Mounted Jib Crane
$7,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Base Plate Mounted Jib Crane
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

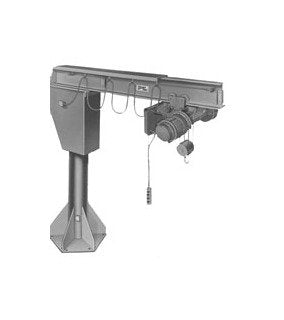

The Heavy Duty Base Plate Mounted Jib Crane from the 400 Series is engineered for high cycle operations demanding precise load spotting with minimal deflection. Designed for heavy impact environments, it excels in loading precision parts onto machine tools, jigs, fixtures, and more. Featuring robust construction with large capacity bearings, adjustable boom assembly, and rigid base plate supported by full plate gussets, this crane ensures stability and durability. With a weight capacity of 6000 lbs. and versatile mounting options, it is a reliable solution for heavy-duty applications. Optional motorized boom rotation enhances efficiency for high production requirements.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

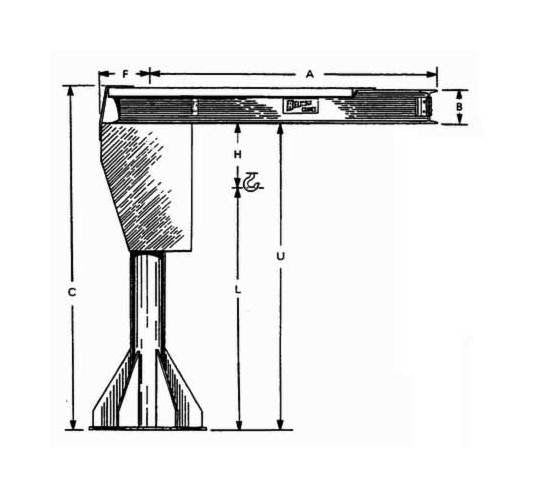

Specifications Base Plate Size
56 inches

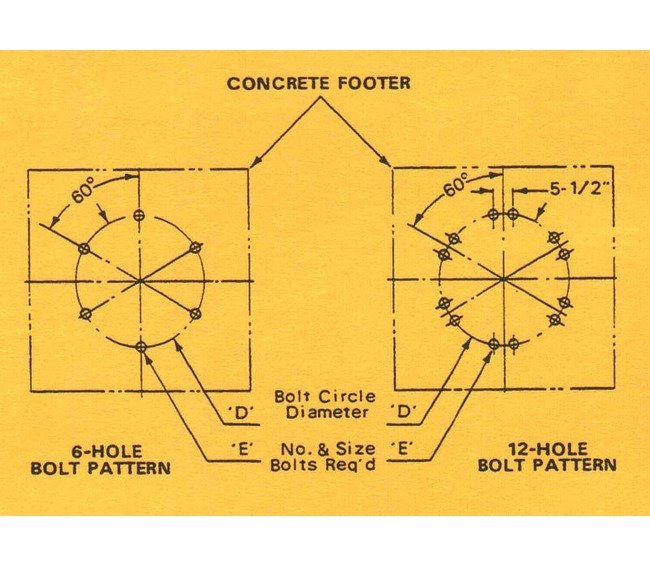

Specifications Bolt Circle Diameter D
48 inches
Specifications Bolt Diameter E
1 1/4 inches
Specifications Boom Size B
20"C
Specifications Capacity
6000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
17'-9"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
18'-0"
Specifications Under Boom U
16'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
5330 lbs.
