Heavy-Duty Base Plate Mounted Jib Crane
Heavy-Duty Base Plate Mounted Jib Crane
SKU:REL-f1fa1f
Efficient and robust base plate jib crane for heavy-duty lifting tasks in industrial settings.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty Base Plate Mounted Jib Crane
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Base Plate Mounted Jib Crane
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

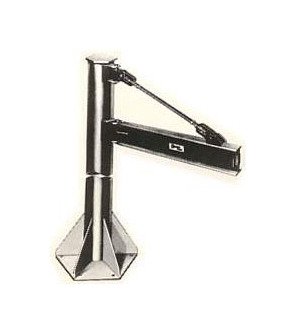

The Model 600 BPM Base Plate Mounted Jib Crane is a robust solution for heavy-duty lifting tasks, with a capacity of 500 lbs. It features a sturdy 6-inch boom, spans 8 feet, and reaches a max height of 13 feet. Designed for high-cycle industrial applications, it offers options for manual or motorized hoisting and is suitable for extreme outdoor conditions. The crane comes with anchor bolts and a template for easy installation, making it ideal for rigorous work environments.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

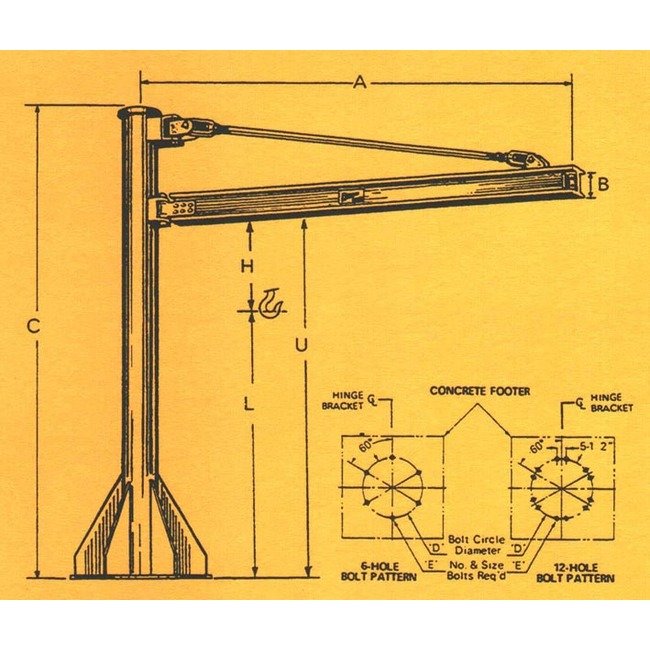

Specifications Base Plate Size
36 inches
Specifications Bolt Circle Diameter D
28 inches
Specifications Bolt Diameter E
3/4 inches
Specifications Boom Size B
6 inches
Specifications Capacity
500 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
13'-1"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
6
Specifications Span A
8'-0"
Specifications Under Boom U
10'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
725 lbs.
