Heavy Duty Base Plate Mounted Jib Crane - Model 400
Heavy Duty Base Plate Mounted Jib Crane - Model 400
SKU:REL-0a64f7
Precision-engineered heavy duty jib crane for high-cycle operations requiring precise load placement and durability.
Regular price
$4,499.99
Regular price
Sale price
$4,499.99
Unit price
per
Initiate Order
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$4,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$4,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

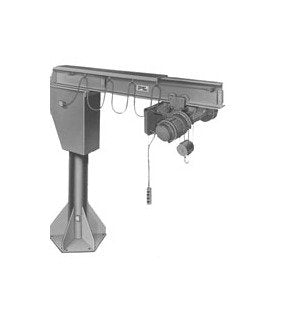

The Model 400 BPM Base Plate Mounted Jib Crane is meticulously engineered for heavy-duty, high-cycle applications that demand precise load positioning with minimal deflection. Ideal for tasks such as loading precision parts into machine tools, assembly work, and operations with heavy impacts, this crane features precision upper head and lower roller bearings designed for a 10,000-hour average life. With adjustable bottom roller assembly for leveling, boom lengths exceeding 12 ft. are enhanced with channel capping for additional lateral stability. Rigidly supported by heavy full plate gussets, it offers optional 360° rotation electric conductors or air supply swivel connectors for uninterrupted rotation needs. Consider motorized boom rotation for high-production efficiency.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Base Plate Size
36 inches

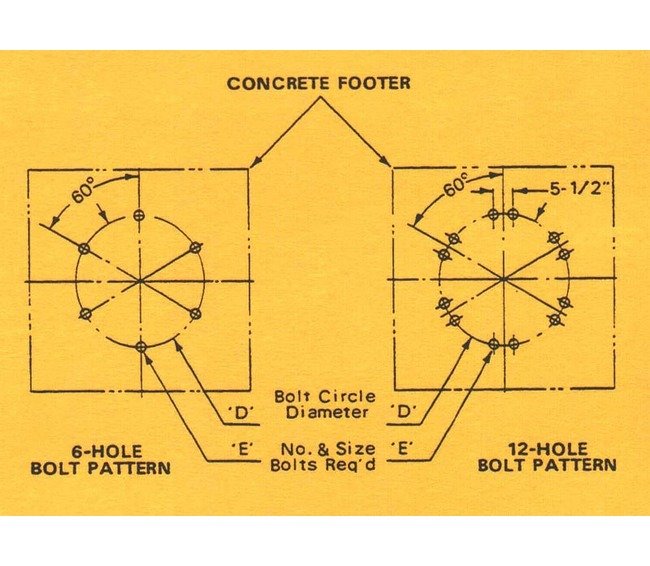

Specifications Bolt Circle Diameter D
28 inches
Specifications Bolt Diameter E
3/4 inches

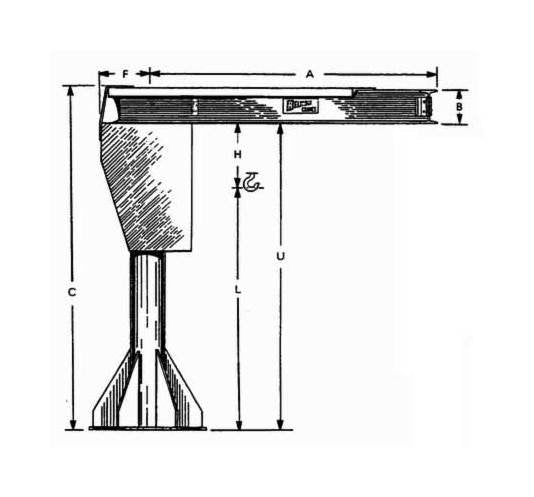

Specifications Boom Size B
7"
Specifications Capacity
1000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
10'-8"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
6
Specifications Span A
8'-0"
Specifications Under Boom U
10'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
920 lbs.
