Heavy Duty Base Plate Mounted Jib Crane - Model 400
Heavy Duty Base Plate Mounted Jib Crane - Model 400
SKU:REL-2be2c6
Precision-engineered heavy-duty jib crane for high-cycle operations with large capacity bearings and optional rotation for enhanced productivity.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$7,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

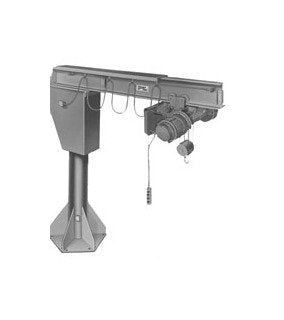

The Model 400 BPM Base Plate Mounted Jib Crane is engineered for heavy-duty high cycle operations, ensuring precise load spotting with minimal deflection and boom spring. Ideal for loading precision parts into machine tools, jigs, fixtures, and close assembly work, this crane is equipped with large capacity precision bearings for a 10,000-hour average life. Its adjustable bottom roller assembly facilitates leveling when needed, while boom lengths over 12 ft. feature channel capping for added lateral stability. With a rigid base plate supported by heavy full plate gussets, this crane offers optional features like 360° rotation, electric current conductors, air supply swivel connectors, and motorized boom rotation for high production applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

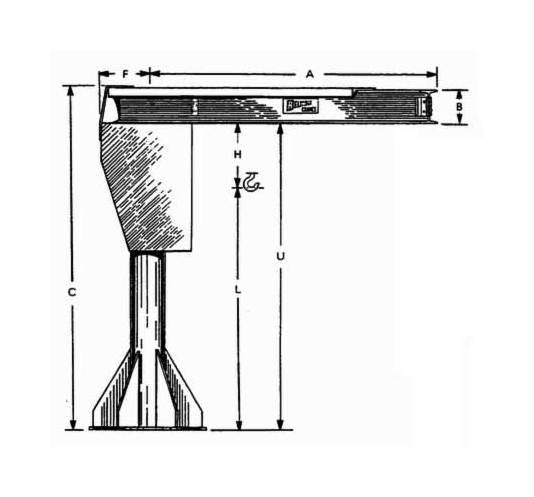

Specifications Base Plate Size
42 inches

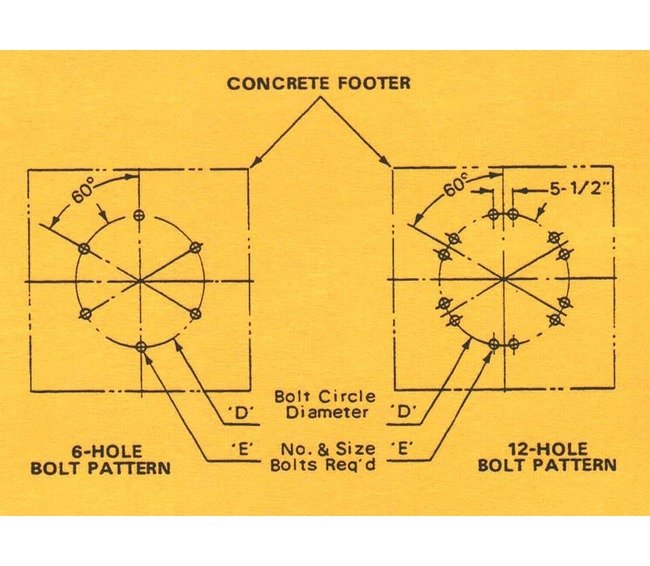

Specifications Bolt Circle Diameter D
35 inches
Specifications Bolt Diameter E
7/8 inches
Specifications Boom Size B
15"C
Specifications Capacity
1000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
17'-4"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
18'-0"
Specifications Under Boom U
16'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2490 lbs.
