Heavy Duty Base Plate Mounted Jib Crane - Model 400
Heavy Duty Base Plate Mounted Jib Crane - Model 400
SKU:REL-2290ec
Precision-engineered heavy-duty jib crane for high cycle operations, ensuring stability and spot-on load positioning.
Regular price
$3,849.99
Regular price
Sale price
$3,849.99
Unit price
per
Initiate Order
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$3,849.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$3,849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

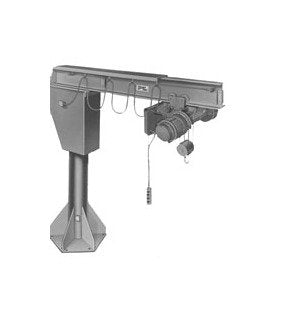

The Model 400 BPM Base Plate Mounted Jib Crane is engineered for heavy-duty high cycle operations requiring impeccable load positioning with minimal deflection. Featuring precision upper head and lower roller bearings designed for 10,000 hours of average life, this crane excels in critical load spotting tasks such as loading precision parts into machine tools, jigs, fixtures, and close tolerance assembly work. With a robust base plate supported by heavy full plate gussets, adjustable bottom roller assembly for leveling, and optional 360° rotation capabilities, this crane ensures exceptional stability and precise load handling. Ideal for heavy impact environments, this crane is a reliable solution for high production applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Base Plate Size
36 inches

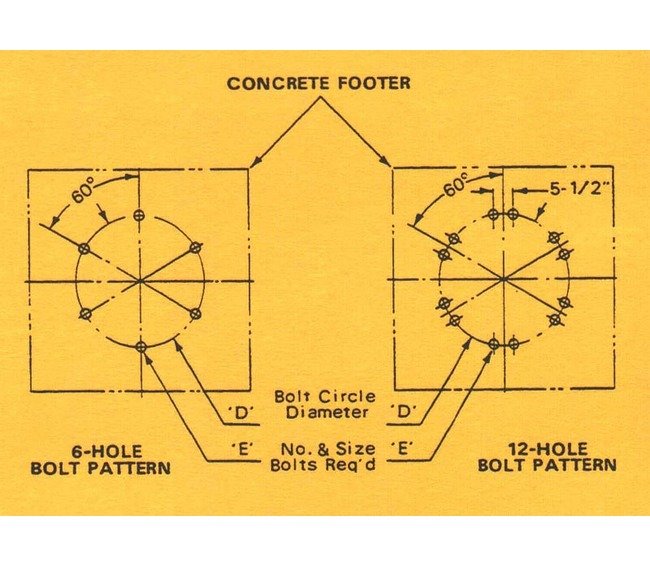

Specifications Bolt Circle Diameter D
28 inches
Specifications Bolt Diameter E
7/8 inches
Specifications Boom Size B
10"
Specifications Capacity
1000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

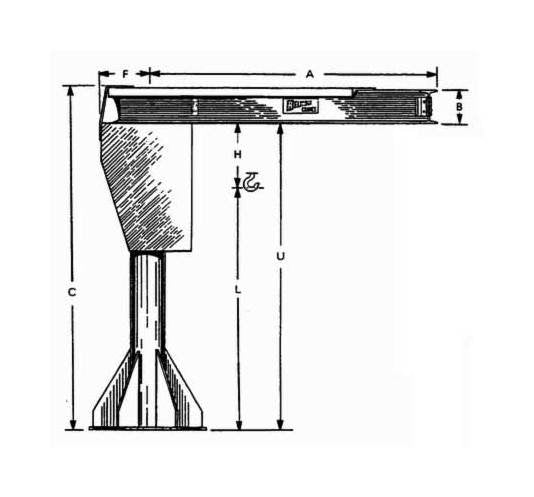

Specifications Max Height C
16'-11"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
12'-0"
Specifications Under Boom U
16'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1565 lbs.
