Heavy Duty Base Plate Mounted Jib Crane - Model 400
Heavy Duty Base Plate Mounted Jib Crane - Model 400
SKU:REL-c8009e
Optimal for heavy-duty operations requiring precise load spotting with minimal deflection and high impact handling. Equipped with durable components for longevity and stability.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$5,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

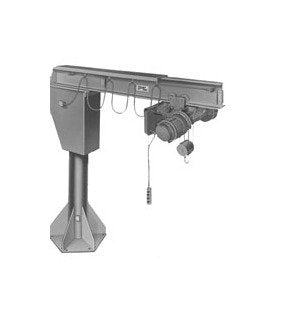

The Model 400 BPM Base Plate Mounted Jib Crane is engineered for heavy-duty high cycle operations, emphasizing precise load spotting with minimal deflection and boom spring. Ideal for loading precision parts into machine tools, jigs, fixtures, and assembly work requiring close tolerances and handling heavy impact. Featuring precision upper head and lower roller bearings for longevity, adjustable bottom roller assembly for leveling, and channel capping for lateral stability on boom lengths over 12 ft. Equipped with a rigid base plate supported by robust full plate gussets, and options for 360° rotation conductors or air supply swivel connectors. Motorized boom rotation available for increased productivity.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

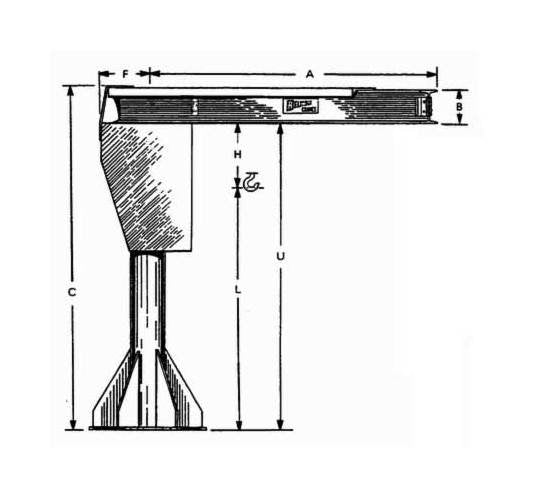

Specifications Base Plate Size
42 inches

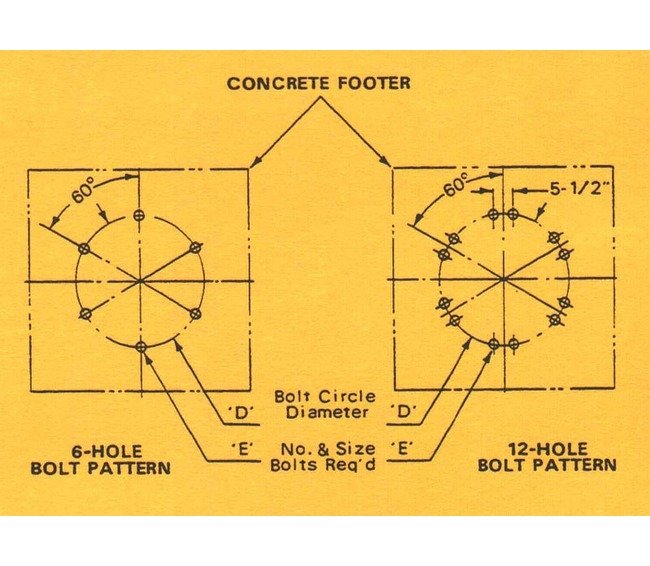

Specifications Bolt Circle Diameter D
35 inches
Specifications Bolt Diameter E
7/8 inches
Specifications Boom Size B
12"C
Specifications Capacity
2000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
13'-1"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
14'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2005 lbs.
