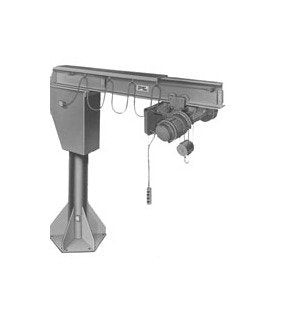

Heavy Duty Base Plate Mounted Jib Crane - Model 400
Heavy Duty Base Plate Mounted Jib Crane - Model 400
SKU:REL-101ac2
Heavy-duty precision meets high performance in the Model 400 BPM Jib Crane, designed for close load spotting and heavy impact operations.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$7,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Base Plate Mounted Jib Crane - Model 400
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 400 BPM Base Plate Mounted Jib Crane is specifically engineered for heavy-duty high cycle operations requiring precise load spotting with minimal deflection and boom spring. Ideal for loading precision parts into machine tools, jigs, fixtures, and more, this crane excels in operations where heavy impact is expected. With a 10,000 lbs. capacity, 16'-0" span, and adjustable bottom roller assembly for leveling, it offers exceptional performance and durability. Featuring precision upper head and lower roller bearings designed for 10,000 hours, channel capping for additional stability on boom lengths over 12 ft., and rigid support with heavy full plate gussets, this crane ensures reliable and efficient lifting operations. Optional motorized boom rotation is available for high production applications, ensuring seamless functionality.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Base Plate Size
70 inches

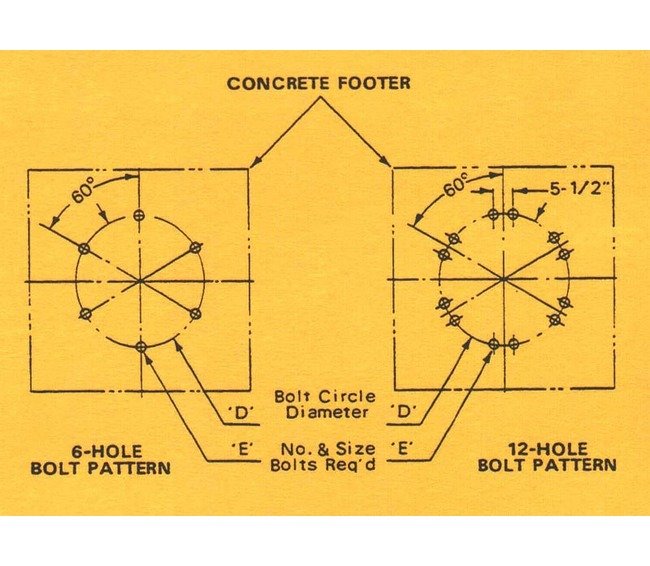

Specifications Bolt Circle Diameter D
60 inches
Specifications Bolt Diameter E
1 1/4 inches
Specifications Boom Size B
24"C
Specifications Capacity
10000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
18'-1"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12

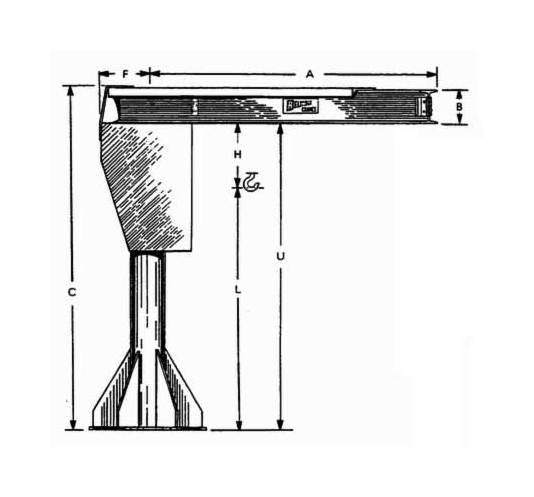

Specifications Span A
16'-0"
Specifications Under Boom U
16'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
5900 lbs.
