Heavy-Duty Base Plate Mounted Jib Crane - Model 600 BPM
Heavy-Duty Base Plate Mounted Jib Crane - Model 600 BPM
SKU:REL-d7b55c
High-capacity jib crane for heavy-duty applications. 18 ft span and 4000 lbs. capacity. Versatile mounting options & electrification enhancements.
Regular price
$5,899.00
Regular price
Sale price
$5,899.00
Unit price
per
Initiate Order
Heavy-Duty Base Plate Mounted Jib Crane - Model 600 BPM
$5,899.00
Quantity: 1
Claim Your Seller Account
Heavy-Duty Base Plate Mounted Jib Crane - Model 600 BPM
$5,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

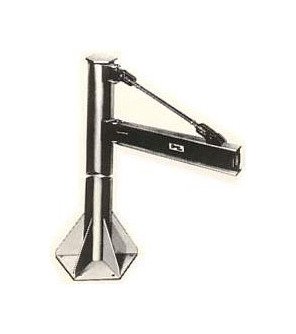

The Model 600 BPM Base Plate Mounted Jib Crane is engineered for heavy lifting, with a robust 4000 lbs. capacity. Featuring a sturdy 56-inch base plate, this crane boasts a span of 18 feet and a max height of 21'-2". With options for extreme condition hoist headroom and various mounting configurations including concrete and wall mount, this crane is versatile and reliable for high-cycle usage. Electrification options like collector rings and trolley track enhance operational efficiency. Suitable for both indoor and outdoor use, this crane is designed for heavy-duty applications while meeting stringent industry requirements.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

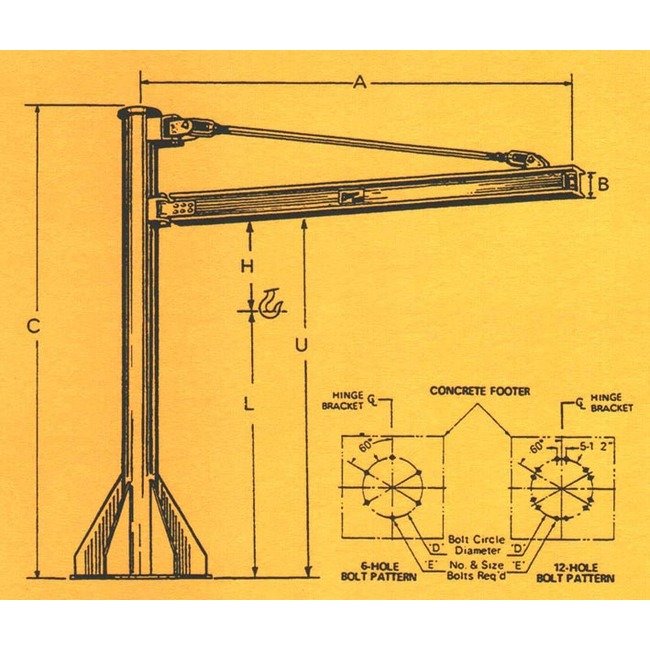

Specifications Base Plate Size
56 inches
Specifications Bolt Circle Diameter D
48 inches
Specifications Bolt Diameter E
7/8 inches
Specifications Boom Size B
10 inches
Specifications Capacity
4000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
21'-2"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
18'-0"
Specifications Under Boom U
15'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
3660 lbs.
