Heavy-Duty Base Plate Mounted Jib Crane - Model 600 BPM

Name: Heavy-Duty Base Plate Mounted Jib Crane - Model 600 BPM
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-0091e0
Price: 5699.99 USD
Availability: OutOfStock

SKU:REL-0091e0

Versatile heavy-duty jib crane with 10000 lbs capacity, 14' span, and 15' under boom reach.

$5,699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Model 600 BPM Base Plate Mounted Jib Crane is a robust solution designed for heavy-duty lifting applications with a capacity of 10000 lbs. Featuring a 14-foot span and 15-foot reach under the boom, this crane offers versatility and strength. With a 12-inch boom size and a max height of 21'-7", it provides efficient lifting operations. The base plate size of 56 inches and sturdy construction ensure stability. This crane is customizable with various mounting options and electrification choices to meet diverse industrial needs.

Product Specifications

Electrification Electrification

Power Supply Extra Features

Anchor Bolts | Template

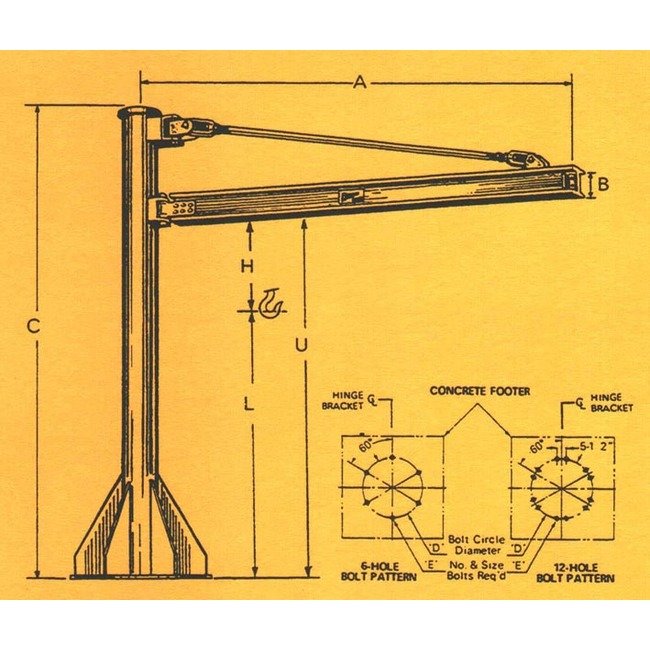

Specifications Base Plate Size

56 inches

Specifications Bolt Circle Diameter D

48 inches

Specifications Bolt Diameter E

1 1/4 inches

Specifications Boom Size B

12 inches

Specifications Capacity

10000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Max Height C

21'-7"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

Specifications Span A

14'-0"

Specifications Under Boom U

15'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

4635 lbs.
