Heavy-Duty Base Plate Mounted Jib Cranes
Heavy-Duty Base Plate Mounted Jib Cranes
SKU:REL-96b675
Heavy-Duty Base Plate Mounted Jib Cranes with 1000 lbs. capacity, 16'-0" span, and reliable performance. Ideal for heavy-duty applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy-Duty Base Plate Mounted Jib Cranes
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Base Plate Mounted Jib Cranes
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

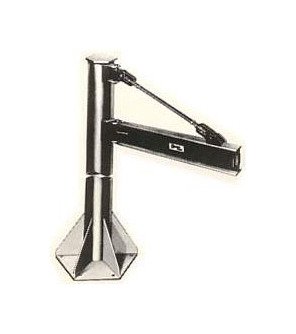

The Model 600 BPM Base Plate Mounted Jib Cranes are engineered for reliability and durability, suitable for heavy-duty applications. With a 1000 lbs. capacity and a 16'-0" span, these jib cranes offer exceptional strength and flexibility. Featuring a 6-inch boom size and a max height of 17'-4", they provide robust performance in various settings. The bolt circle diameter of 28 inches with 12 bolts ensures secure mounting, supported by a 36-inch base plate. Electrification options include bottom entry collector rings, control conductors, and more, enhancing operational efficiency. Designed for extreme conditions and outdoor use, these jib cranes deliver exceptional lifting capabilities.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

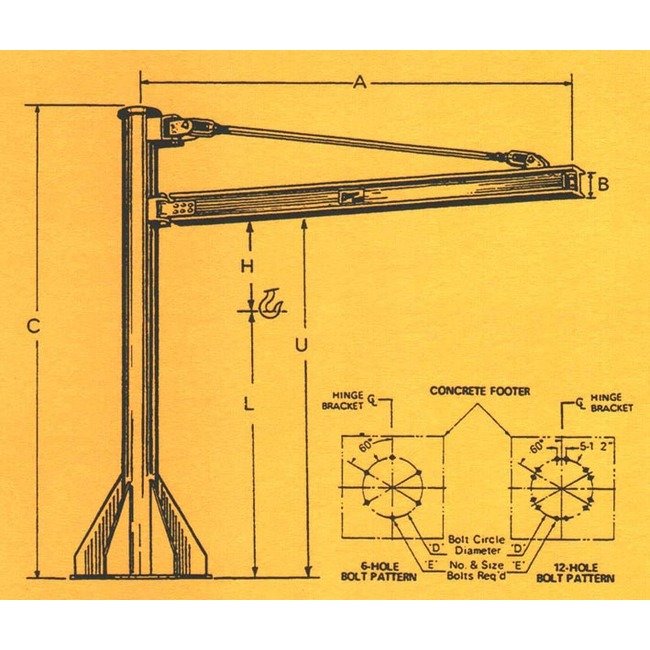

Specifications Base Plate Size
36 inches
Specifications Bolt Circle Diameter D
28 inches
Specifications Bolt Diameter E
3/4 inches
Specifications Boom Size B
6 inches
Specifications Capacity
1000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
17'-4"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
16'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1440 lbs.
