Heavy-Duty Bend Sheaves with Mounting Frame
Heavy-Duty Bend Sheaves with Mounting Frame
SKU:RIG-02c174
Heavy-Duty Bend Sheaves with Mounting Frame, ideal for industrial lifting and pulling applications. Capacity: 7500 lbs., Wire Rope Diameter: 9/16 inches.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
Heavy-Duty Bend Sheaves with Mounting Frame
$269.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Bend Sheaves with Mounting Frame
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

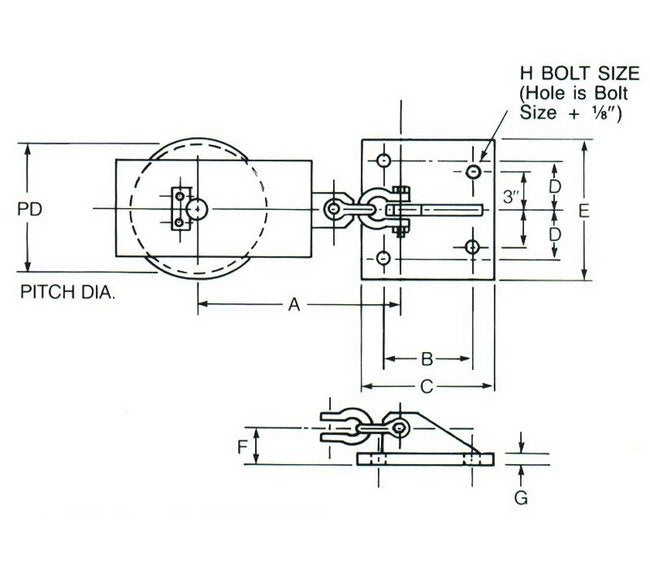

The Heavy-Duty Bend Sheaves with Mounting Frame, model BS, is a robust and reliable solution designed for industrial lifting and pulling applications. With a capacity of 7500 lbs. and a wire rope diameter of 9/16 inches, this bend sheave ensures smooth and efficient operation. Its pitch diameter of 11 1/4 inches, along with dimensions A to H, provides stability and strength during operation. Equipped with necessary controls like a lever drum mounted at the winch and a magnetic remote pushbutton, this product offers versatility and ease of use. The multiple mounting options of horizontal base, inverted ceiling, and vertical configurations make it adaptable to varied setups.
Product Specifications
Specifications Capacity
7500 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
18 1/4 inches
Specifications Dimension B
10 inches
Specifications Dimension C
13 inches
Specifications Dimension D
4 inches
Specifications Dimension E
11 inches
Specifications Dimension F
3 3/4 inches
Specifications Dimension G
7/8 inches
Specifications Dimension H
1 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
11 1/4 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
9/16 inches
