Heavy-Duty Bend Sheaves with Mounting Frame
Heavy-Duty Bend Sheaves with Mounting Frame
SKU:RIG-e5a9ef
High-capacity sheaves for heavy lifting and pulling tasks, equipped with essential controls. Compliant with federal procurement standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Heavy-Duty Bend Sheaves with Mounting Frame
$1,299.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Bend Sheaves with Mounting Frame
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Heavy-Duty Bend Sheaves with Mounting Frame are designed for rigorous lifting and pulling tasks, with a high capacity of 20000 lbs. Featuring a 7/8 inches wire rope diameter and a sturdy construction, these sheaves ensure reliable performance. The mounting options include horizontal base, inverted ceiling, and vertical, catering to versatile installation needs. Equipped with essential controls like a lever drum mounted at the winch and magnetic remote pushbutton, these sheaves provide efficient operation for tasks requiring an electrical brake. Compliant with federal procurement standards, these sheaves meet the demands of government and institutional buyers.
Product Specifications
Specifications Capacity
20000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

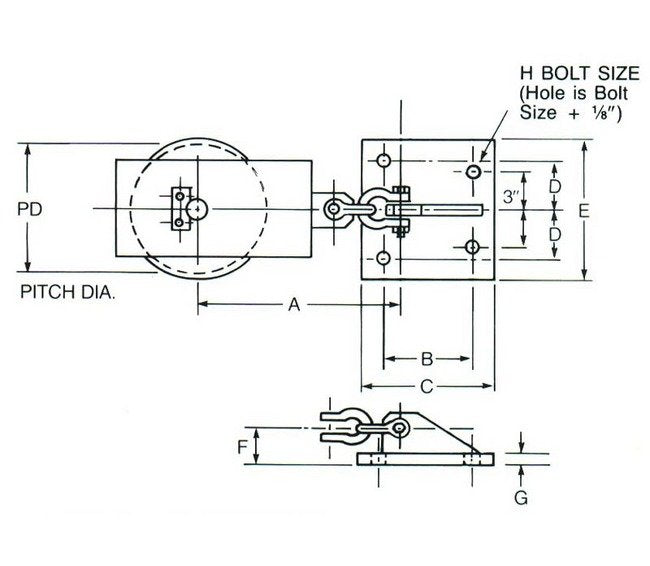

Specifications Dimension A
32 inches
Specifications Dimension B
12 inches
Specifications Dimension C
17 inches
Specifications Dimension D
6 inches
Specifications Dimension E
17 inches
Specifications Dimension F
4 3/4 inches
Specifications Dimension G
1 1/4 inches
Specifications Dimension H
1 1/2 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
17 1/2 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
7/8 inches
