Heavy-Duty Bend Sheaves with Mounting Frame
Heavy-Duty Bend Sheaves with Mounting Frame
SKU:RIG-e4ea1d
Heavy-Duty Bend Sheaves for robust lifting and pulling applications, suitable for various mounting setups.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Heavy-Duty Bend Sheaves with Mounting Frame
$749.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Bend Sheaves with Mounting Frame
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Bend Sheaves with Mounting Frame are designed to meet the rigorous requirements of both industrial and government applications. With a robust model BS design and a high capacity of 10000 lbs., these sheaves ensure reliable performance in lifting and pulling operations. Featuring a Wire Rope Diameter of 5/8 inches and a Pitch Diameter of 12 1/2 inches, these sheaves provide precision and strength. The included Mounting options of Horizontal Base, Inverted Ceiling, and Vertical allow for versatile installation to suit various setups. Equipped with essential features like Electrical Brake compatibility and multiple control options, including Lever Drum and Magnetic Remote Pushbutton, these sheaves ensure efficiency and safety in operation.
Product Specifications
Specifications Capacity
10000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

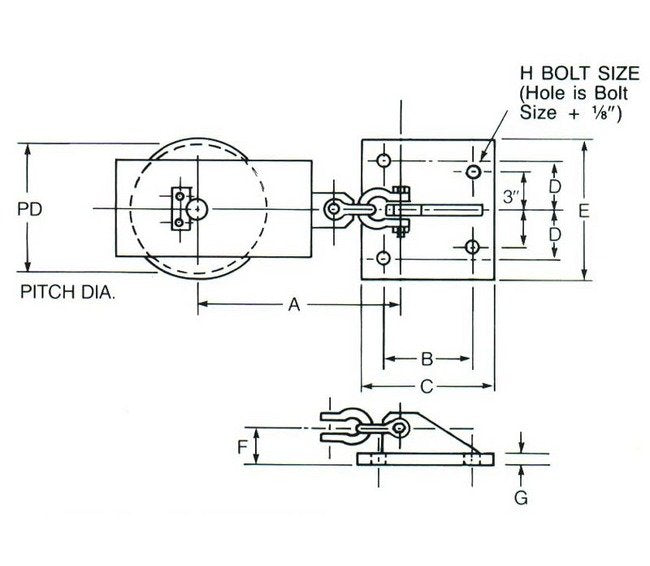

Specifications Dimension A
20 3/4 inches
Specifications Dimension B
10 inches
Specifications Dimension C
13 1/4 inches
Specifications Dimension D
4 1/2 inches
Specifications Dimension E
12 1/4 inches
Specifications Dimension F
4 1/4 inches
Specifications Dimension G
1 inches
Specifications Dimension H
1 1/8 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
12 1/2 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/8 inches
