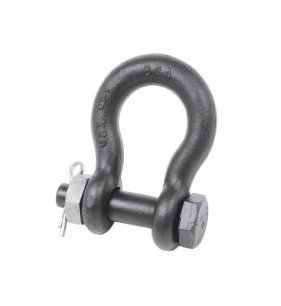

Heavy Duty Bolt Type Anchor Shackle

Heavy Duty Bolt Type Anchor Shackle

SKU:HOI-e23402

Rugged Bolt Type Shackle, Carbon Steel, 13000 lb Load Rated, Meets Federal Spec RR-C 271D

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Heavy Duty Bolt Type Anchor Shackle

Heavy Duty Bolt Type Anchor Shackle

$49.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Bolt Type Anchor Shackle

Heavy Duty Bolt Type Anchor Shackle

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy Duty Bolt Type Anchor Shackle is a rugged industrial hoist-ring accessory engineered to the highest standards. Crafted from durable carbon steel, this shackle boasts a minimum ultimate load six times its working load limit, ensuring exceptional safety and reliability. The included thin head bolt & nut with cotter pin guarantee secure fastening. With specifications meeting Federal Specification RR-C 271D, Type IVA, Grade A, Class 3, and a load rating of 13000 pounds, this shackle is ideal for heavy-duty lifting applications.

Product Specifications

Specifications A Radius
1.14 in
Specifications Country Of Origin
US
Specifications C Ring Width
4.03 in
Specifications D Diameter
0.88 in
Specifications F Height
5.83 in
Specifications H Inside Clearance
3.31 in
Specifications I Overall Width
4.71 in
Specifications Material
Carbon Steel
Specifications M Inside Width
1.44 in
Specifications Ps Load Rated
13000 Pounds (5897 kg)
Specifications R1
0.88 in
Specifications R2
2.09 in
Specifications R Bolt Diameter
1.00 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
3.95 lb
