Heavy Duty Bolt Type Anchor Shackle
Heavy Duty Bolt Type Anchor Shackle
SKU:HOI-16621e
Heavy Duty Bolt Type Anchor Shackle: Superior strength, secure fastening, and Federal Specification compliance for heavy-duty applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty Bolt Type Anchor Shackle
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Bolt Type Anchor Shackle
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

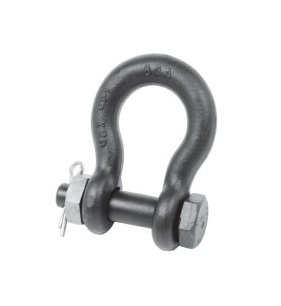

The Heavy Duty Bolt Type Anchor Shackle is a superior industrial hoist ring engineered to meet strict standards. Crafted from high-quality carbon steel, this shackle boasts exceptional strength and durability. Its thin head bolt & nut with cotter pin design ensures secure fastening for heavy loads. With a minimum ultimate load of 6 times the working load limit, it offers unmatched reliability. Compliant with Federal Specification RR-C 271D, Type IVA, Grade A, Class 3, this shackle is designed for heavy-duty applications. With a load rating of 19000 pounds and precise dimensions, this anchor shackle is ideal for industrial use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Radius
1.46 in
Specifications Country Of Origin
US
Specifications C Ring Width
5.16 in
Specifications D Diameter
1.13 in
Specifications F Height
7.47 in
Specifications H Inside Clearance
4.25 in
Specifications I Overall Width
6.00 in
Specifications Material
Carbon Steel
Specifications M Inside Width
1.81 in
Specifications Ps Load Rated
19000 Pounds (8618 kg)
Specifications R1
1.13 in
Specifications R2
2.69 in
Specifications R Bolt Diameter
1.25 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
8.27 lb
