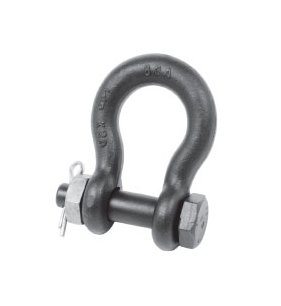

Heavy Duty Bolt Type Anchor Shackle

Heavy Duty Bolt Type Anchor Shackle

SKU:HOI-2ed1b1

Heavy Duty Bolt Type Anchor Shackle with thin head bolt & nut for secure fastening. Meets Federal Spec RR-C 271D. Reliable & durable.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Heavy Duty Bolt Type Anchor Shackle

Heavy Duty Bolt Type Anchor Shackle

$39.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Bolt Type Anchor Shackle

Heavy Duty Bolt Type Anchor Shackle

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy Duty Bolt Type Anchor Shackle is an essential component in industrial lifting applications, designed to the highest standards for safety and reliability. This carbon steel shackle features a thin head bolt, nut, and cotter pin for secure fastening. With a minimum ultimate load six times the working load limit, it ensures robust performance. Meeting Federal Specification RR-C 271D, Type IVA, Grade A, Class 3, this shackle guarantees superior quality and adherence to stringent industry standards.

Product Specifications

Specifications A Radius
0.66 in
Specifications Country Of Origin
US
Specifications C Ring Width
2.31 in
Specifications D Diameter
0.50 in
Specifications F Height
3.28 in
Specifications H Inside Clearance
1.88 in
Specifications I Overall Width
2.80 in
Specifications Material
Carbon Steel
Specifications M Inside Width
0.81 in
Specifications Ps Load Rated
4000 Pounds (1814 kg)
Specifications R1
0.50 in
Specifications R2
1.19 in
Specifications R Bolt Diameter
0.63 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.79 lb
