Heavy-Duty Brass Twisted Wire Tube Brush
Heavy-Duty Brass Twisted Wire Tube Brush
SKU:TWI-38d463
Get precise cleaning with our durable Heavy-Duty Brass Twisted Wire Tube Brush. Ideal for hard-to-reach areas and heavy-duty applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy-Duty Brass Twisted Wire Tube Brush
$24.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Brass Twisted Wire Tube Brush
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

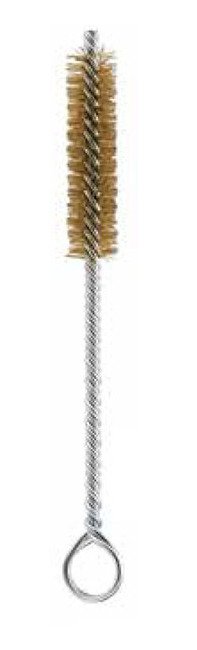

The Heavy-Duty Brass Twisted Wire Tube Brush is a high-performance cleaning tool designed for precision and durability. With a 1/2-inch brush diameter, 2-inch brush length, and 0.006-inch filament diameter, this brush ensures efficient cleaning of hard-to-reach areas. The brass filament material provides superior strength and corrosion resistance, making it ideal for heavy-duty applications. Recommended operating speeds of 100-500 RPM ensure optimal performance without compromising safety. Whether used in industrial, automotive, or maintenance settings, this brush delivers exceptional results with every use.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
1/2 in
Specifications Brush Length
2 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.006 in
Specifications Fill Material
Brass
Specifications Overall Length
5-1/2 in
Specifications Stem Diameter
0.162 in
Twisted Brush Stem Construction
Single Stem/Single Spiral (SS/SS)Filament is twisted between two stem wires with a single layer of filament.Double Stem/Single Spiral (DS/SS)Filament is twisted between four stem wires, with two stem wires on each side for additional strength and higher density fill.Double Stem/Double Spiral (DS/DS)Filament is twisted between four stem wires with two layers of bristles. Each layer is perpendicular to the other with a single stem wire in each quadrant. The highest brush density and highest strength twisted wire brush available.
