Heavy Duty Bronze Gate Valve - 25.40mm
Heavy Duty Bronze Gate Valve - 25.40mm
SKU:VAL-1aff42
Premium 25.40mm Bronze Gate Valve for heavy-duty applications with solid wedge disc and rising stem. Complies with Class 300 standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty Bronze Gate Valve - 25.40mm
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Bronze Gate Valve - 25.40mm
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

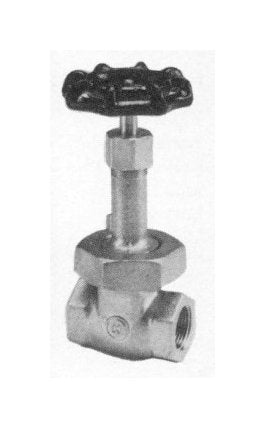

The Gate IB652 Bronze Valve is a heavy-duty solution designed for demanding applications. With a 300 lb. SWP and 1000 lb. WOG (Non-Shock) rating, this valve features a solid wedge disc, rising stem, Cu-Ni seat, and a union bonnet. Measuring 25.40mm and constructed with premium bronze materials, it complies with MSS SP-80 Type 2, Class 300 standards, ensuring reliability and durability in industrial settings.
Product Specifications

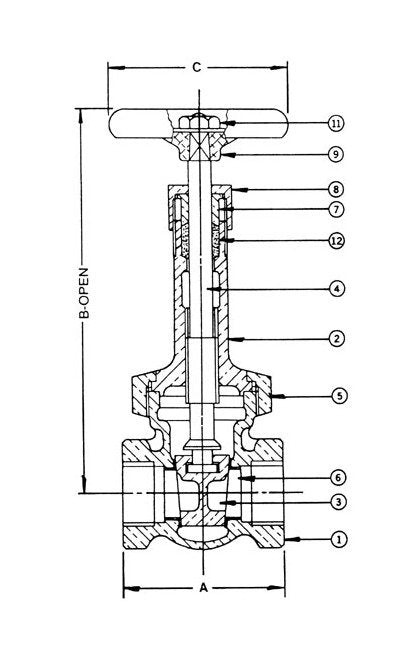

Material List 0
MATERIAL LIST No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Wedge Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Seat Ring Cu-Ni 90-10 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 283 C37700 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Packing Non-Asbestos Commercial
Specifications Dimension A
76.20 mm
Specifications Dimension B
182.58 mm
Specifications Dimension C
69.85 mm
Specifications Material
Bronze
Specifications Size
25.40 mm
