Heavy Duty Bulkhead Connection B3 Ring, DIN 2353 Compression Fitting
Heavy Duty Bulkhead Connection B3 Ring, DIN 2353 Compression Fitting
SKU:FIT-79a74d
Heavy Duty Bulkhead Connection B3 Ring for precise and durable tube connections in high-pressure systems. Compliant with DIN 2353 standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Bulkhead Connection B3 Ring, DIN 2353 Compression Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Bulkhead Connection B3 Ring, DIN 2353 Compression Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

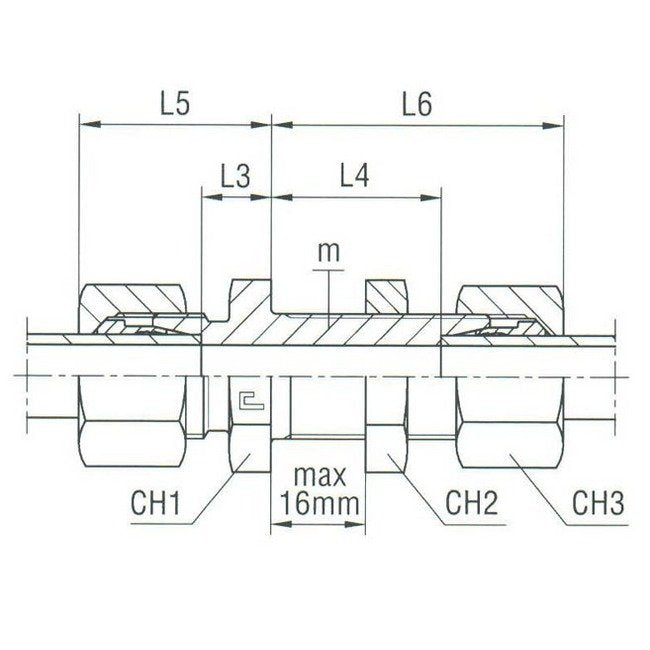

The Heavy Duty Bulkhead Connection - Equipped B3 Ring is crafted from high-grade Carbon Steel, ensuring durability in demanding environments. With a tube diameter of 30.0mm and a thread size of 42x2, it operates at a nominal pressure of 400 bar. Compliant with DIN 2353 standards, it features precise dimensions including L3: 21.5mm, L4: 37.5mm, L5: 48mm, L6: 64mm, CH1: 50mm, CH2: 50mm, and CH3: 50mm. This fitting guarantees secure connections in industrial applications.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
50 mm
Specifications Ch3
50 mm
Specifications L3
21.5 mm
Specifications L4
37.5 mm
Specifications L5
48 mm
Specifications L6
64 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
