Heavy Duty Bulkhead Connection BSP Parallel, Carbon Steel Body - Body Only

Name: Heavy Duty Bulkhead Connection BSP Parallel, Carbon Steel Body - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-9a2565
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-9a2565

Durable Carbon Steel Bulkhead Connection for High-Pressure Applications, DIN 2353 Compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

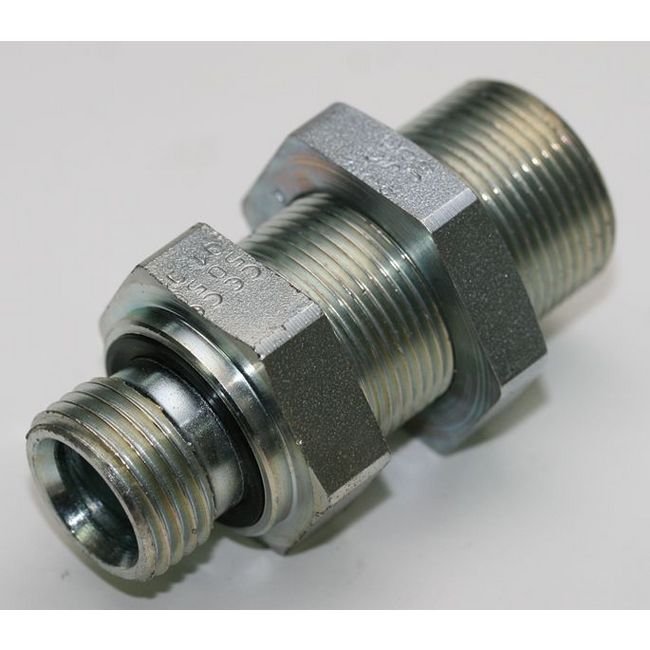

The Heavy Duty Bulkhead Connection with Elastomer Seal Thread BSP Parallel Body offers exceptional durability and reliability for high-pressure applications. With a nominal operating pressure of 400 bar, this fitting is designed for heavy-duty usage. Crafted from premium carbon steel and meeting DIN 2353 standards, it ensures robust performance and longevity. The 30.0 mm tube diameter and precise thread sizes make it a perfect choice for secure connections. Ideal for industrial settings requiring dependable fittings.

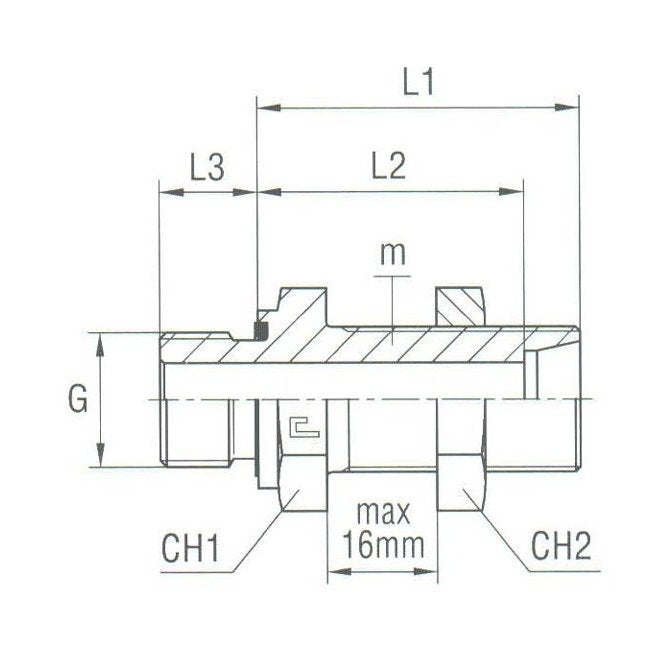

Product Specifications

Specifications Ch1

50 mm

Specifications Ch2

50 mm

Specifications G Thread Size

1 1/4

Specifications L1

69.0 mm

Specifications L2

55.5 mm

Specifications L3

20.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

42x2

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

30.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Heavy Duty Bulkhead Connection BSP Parallel, Carbon Steel Body - Body Only
