Heavy Duty Bulkhead Connection - Equipped B3 Ring
Heavy Duty Bulkhead Connection - Equipped B3 Ring
SKU:FIT-73bf2e
Durable carbon steel Bulkhead Union fitting, ideal for heavy-duty applications, meets DIN 2353 standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Bulkhead Connection - Equipped B3 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Bulkhead Connection - Equipped B3 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Bulkhead Connection - Equipped B3 Ring is crafted from durable carbon steel, making it ideal for industrial applications. With a tube diameter of 16.0 mm and a pressure rating of 400 bar, this fitting ensures reliable performance under high stress conditions. Meeting DIN 2353 standards, it guarantees quality and compatibility with industry requirements, offering a secure and leak-free connection. Designed for precision and longevity, this fitting is a dependable choice for both consumer and institutional usage.

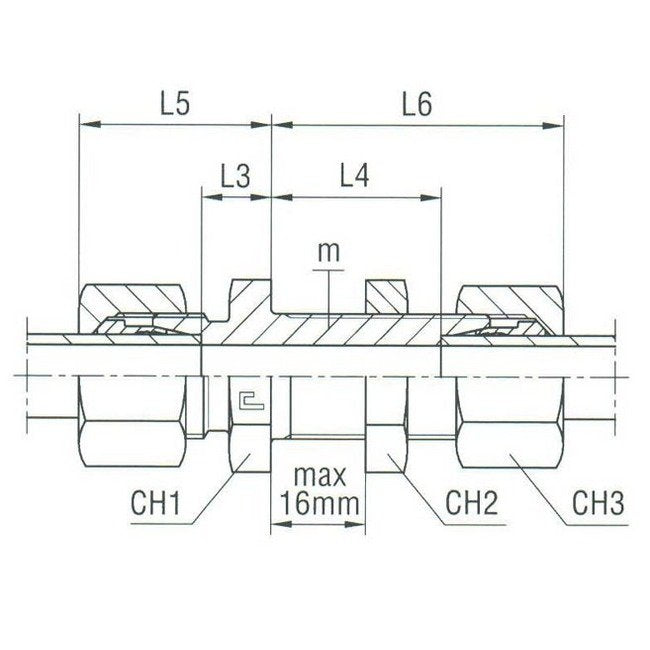

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
32 mm
Specifications Ch3
30 mm
Specifications L3
16.5 mm
Specifications L4
31.5 mm
Specifications L5
35 mm
Specifications L6
50 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
24x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
