Heavy Duty Bulkhead Connection - Equipped B3 Ring

Name: Heavy Duty Bulkhead Connection - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-69dacd
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-69dacd

Premium Heavy Duty Bulkhead Connection - Ideal for Industrial Use

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Bulkhead Connection - Equipped B3 Ring is a premium fitting designed for heavy-duty applications. Constructed from high-quality carbon steel, this compression fitting ensures a secure connection. With a tube diameter of 20.0mm and a thread size of 30x2, it can withstand a nominal operating pressure of 400 bar, making it ideal for industrial settings. Compliant with DIN 2353 standards, this bulkhead union offers reliability and durability for your hydraulic system.

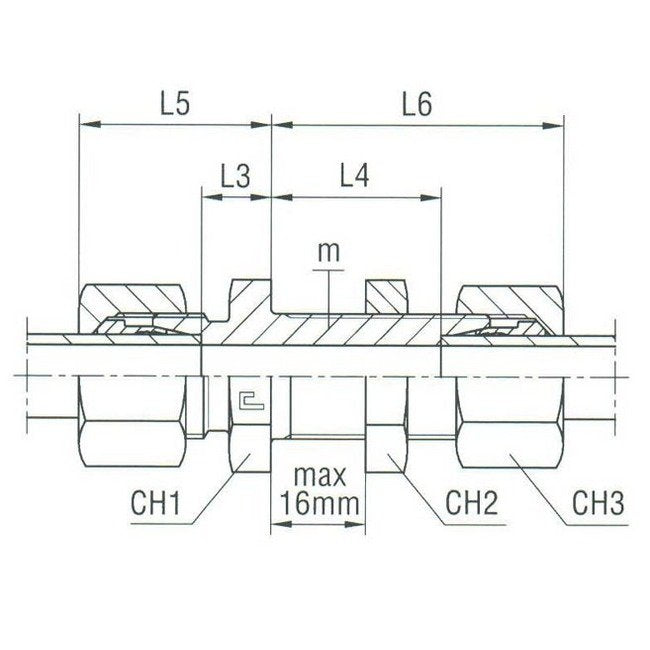

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

41 mm

Specifications Ch3

36 mm

Specifications L3

17.5 mm

Specifications L4

33.5 mm

Specifications L5

39 mm

Specifications L6

55 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

30x2

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

20.0 mm
