Heavy Duty Bulkhead Connection - Equipped B4 Ring, Carbon Steel, 25.0mm Tube Diameter

Name: Heavy Duty Bulkhead Connection - Equipped B4 Ring, Carbon Steel, 25.0mm Tube Diameter
Brand: World Wide Metric, Inc.
SKU: FIT-b5c793
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-b5c793

High-performance Bulkhead Connection - Equipped B4 Ring for heavy-duty industrial use, DIN 2353 compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

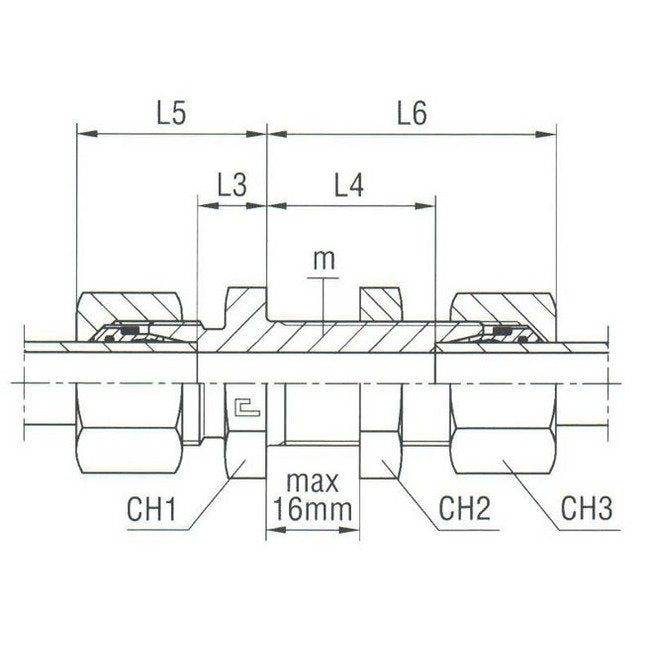

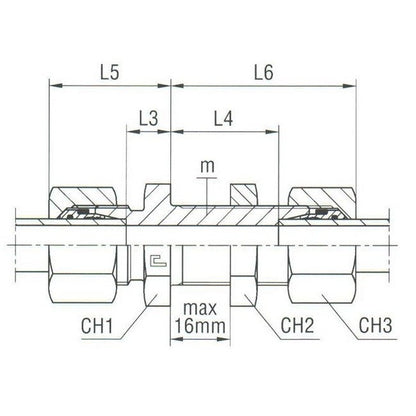

The Heavy Duty Bulkhead Connection with Equipped B4 Ring is a top-of-the-line compression fitting designed for demanding industrial applications. Crafted from high-quality carbon steel, this fitting ensures durability and reliability under extreme pressure conditions. With a tube diameter of 25.0mm and a 36x2 thread size, it meets the rigorous DIN 2353 standards for compression fittings. Its design features, including specific measurements for L3, L4, L5, L6, CH1, CH2, and CH3, guarantee precise installation and secure connections. Operating at a nominal pressure of 400 bar, this bulkhead connection is a robust solution for critical hydraulic systems.

Product Specifications

Specifications Ch1

46 mm

Specifications Ch2

46 mm

Specifications Ch3

46 mm

Specifications L3

20.0 mm

Specifications L4

35 mm

Specifications L5

44 mm

Specifications L6

59 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

36x2

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

25.0 mm
