Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel (Body Only)

Name: Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel (Body Only)
Brand: World Wide Metric, Inc.
SKU: FIT-3bb723
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-3bb723

High-pressure Bulkhead Connection for secure, leak-free fittings in carbon steel material. 630 bar operating pressure, DIN 2353 compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

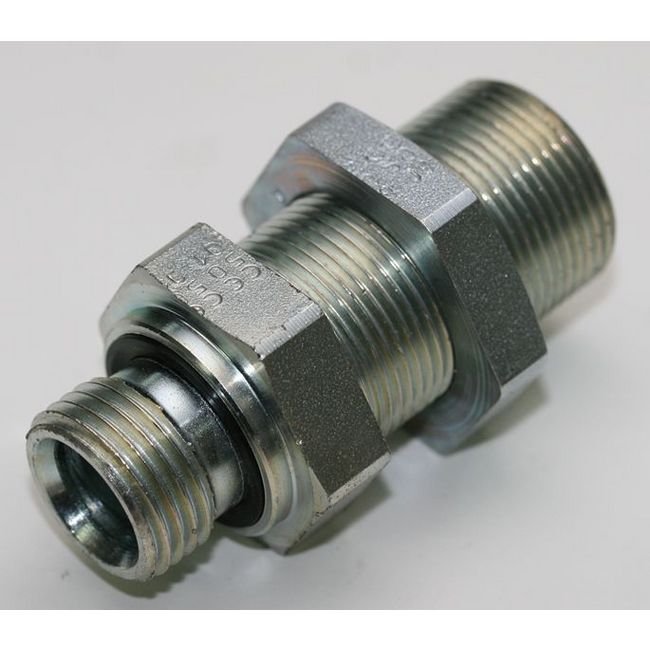

The Heavy Duty Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Body Only is a reliable and durable fitting designed for high-pressure applications, with a nominal operating pressure of 630 bar. Constructed from carbon steel, this fitting ensures longevity and performance. With a tube diameter of 12.0 mm and compliant with DIN 2353 standards, this fitting provides a secure and leak-free connection. The threaded design enhances installation efficiency, while the elastomer seal offers protection against leaks and corrosion.

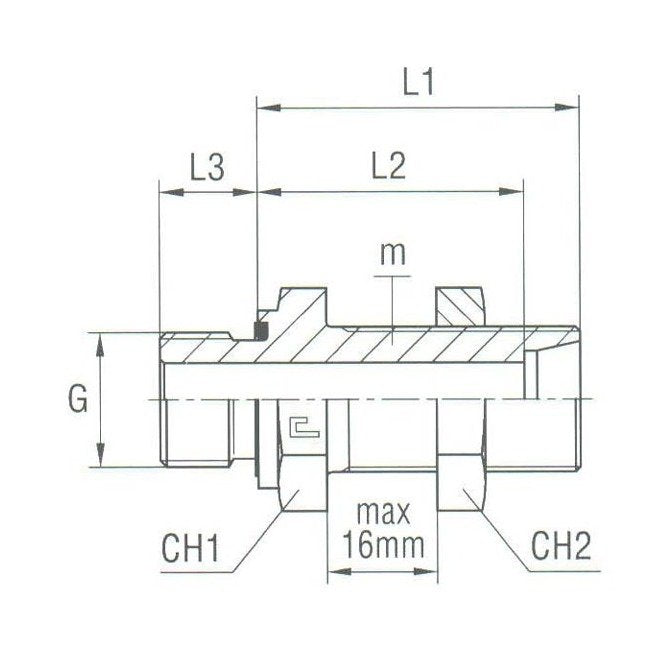

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications G Thread Size

3/8

Specifications L1

50.0 mm

Specifications L2

42.5 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel
