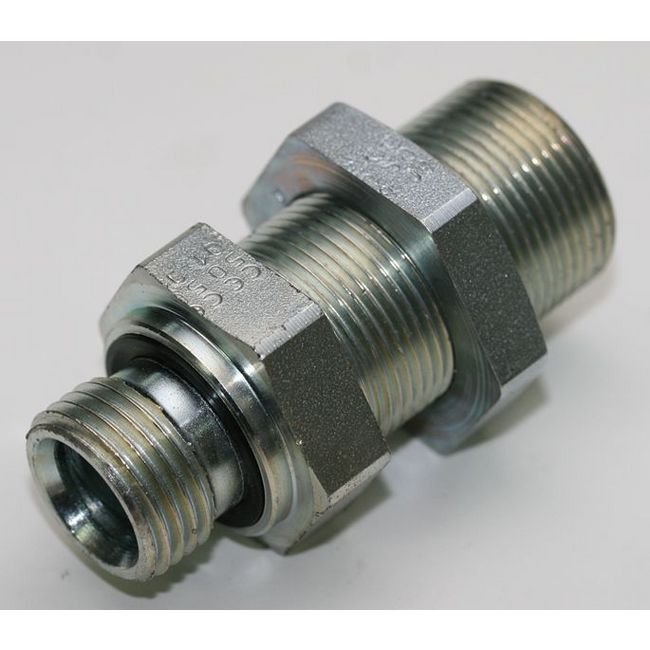

Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Body Only

Name: Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-606e8b
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-606e8b

High-pressure Bulkhead Connection with Elastomer Seal, durable carbon steel construction, DIN 2353 compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Body Only is a robust fitting designed for high-pressure applications, with a nominal operating pressure of 400 bar. Made from durable carbon steel, this fitting ensures reliable performance and longevity. The tube diameter of 16.0 mm and thread sizes of 24x1.5 and 1/2 meet DIN 2353 standards. With precise dimensions and a CH1 and CH2 of 32 mm, this fitting guarantees a secure and leak-free connection, suitable for industrial and institutional usage.

Product Specifications

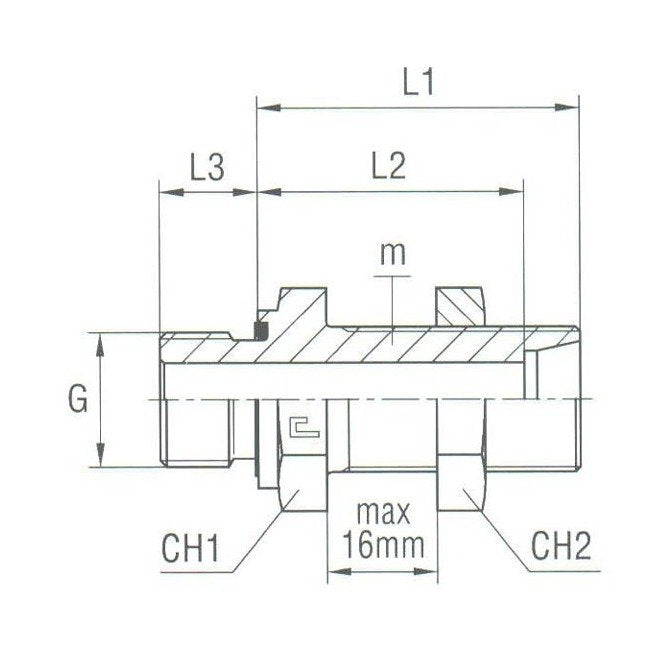

Specifications Ch1

32 mm

Specifications Ch2

32 mm

Specifications G Thread Size

1/2

Specifications L1

54.0 mm

Specifications L2

45.5 mm

Specifications L3

14.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

24x1.5

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Body Only
