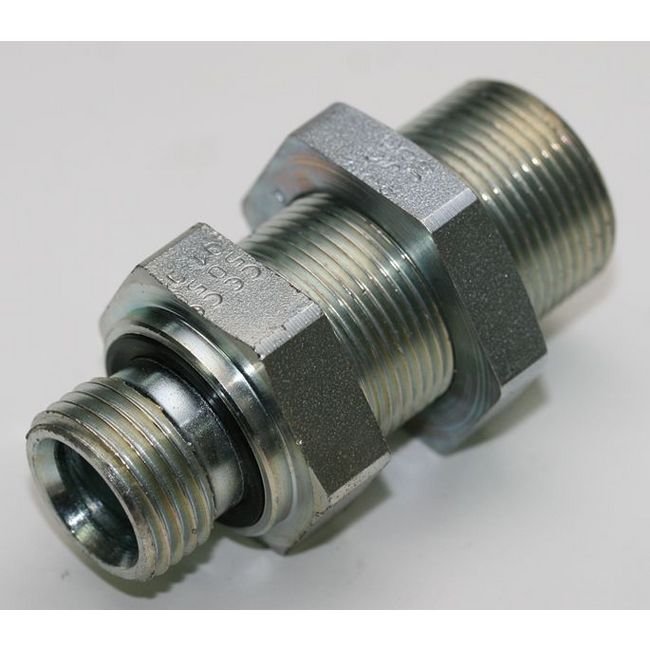

Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Carbon Steel

Name: Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-0eb15d
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-0eb15d

Durable Bulkhead Connection for High-Pressure Systems, BSP Parallel, DIN 2353 Compliant

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Bulkhead Connection with Elastomer Seal is designed for superior performance in high-pressure environments, with a nominal operating pressure of 400 bar. Crafted from durable carbon steel, this fitting ensures reliability. With a tube diameter of 20.0 mm and compliance with DIN 2353 standards, it meets the stringent requirements of industrial applications.

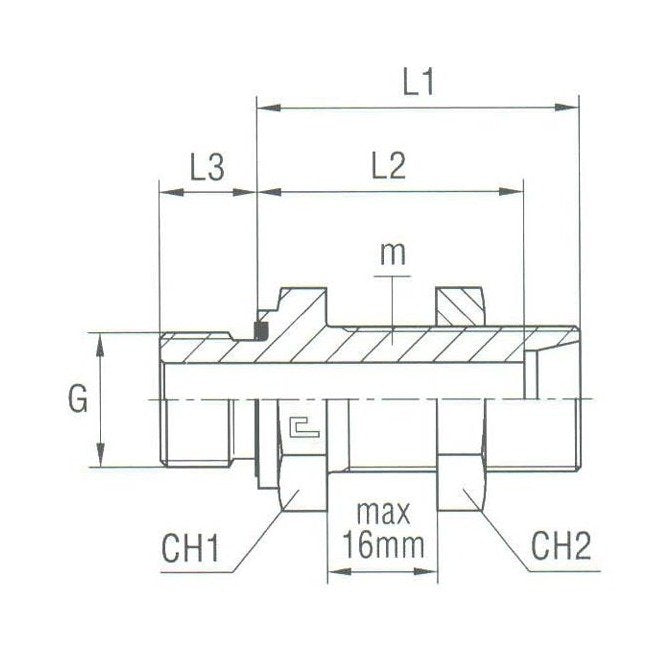

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

41 mm

Specifications G Thread Size

3/4

Specifications L1

59.0 mm

Specifications L2

48.5 mm

Specifications L3

16.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

30x2

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

20.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Carbon Steel
