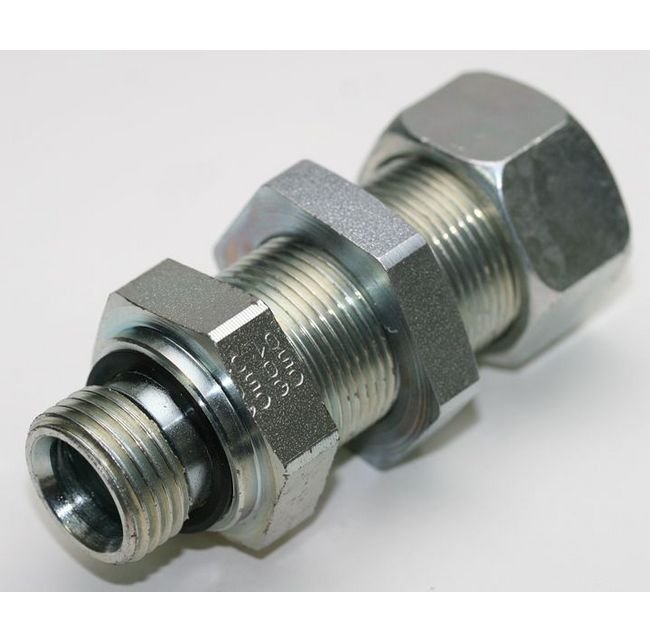

Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel - Carbon Steel

Name: Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel - Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-4ed2cf
Price: 45.99 USD
Availability: OutOfStock

SKU:FIT-4ed2cf

Heavy Duty Bulkhead Connection with Elastomer Seal - Durable Carbon Steel Fitting, DIN 2353 Compliant

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

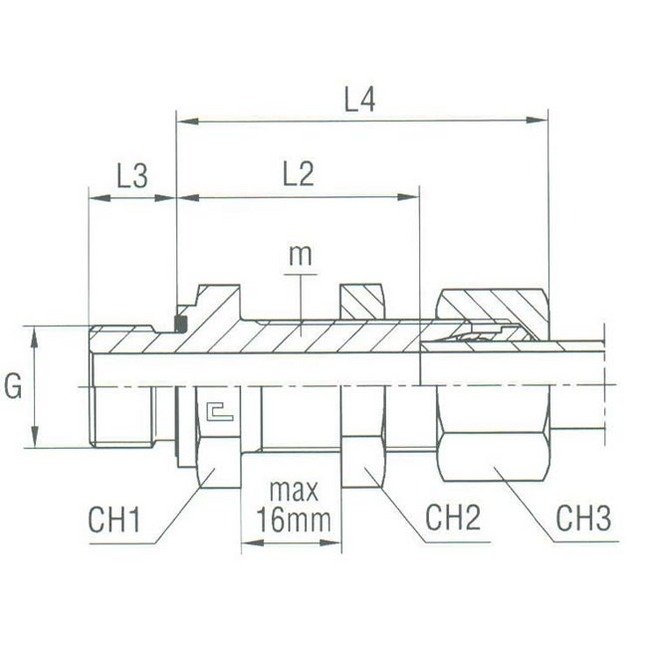

The Heavy Duty Bulkhead Connection with Elastomer Seal is designed for robust performance, with a nominal operating pressure of 630 bar. Made of durable carbon steel, it ensures reliability in demanding environments. This fitting, meeting DIN 2353 standards, features a 6.0 mm tube diameter, 14x1.5 m thread size, and 1/4 G thread size. With precise dimensions including L2: 38.0 mm, L3: 12.0 mm, L4: 53 mm, CH1: 19.0 mm, CH2: 19.0 mm, and CH3: 17 mm, this product excels in quality and compliance.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Ch3

17 mm

Specifications G Thread Size

1/4

Specifications L2

38.0 mm

Specifications L3

12.0 mm

Specifications L4

53 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel - Carbon Steel
