Heavy Duty Bulkhead Connection with Elastomer Seal BSP Parallel - Carbon Steel

Name: Heavy Duty Bulkhead Connection with Elastomer Seal BSP Parallel - Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-7c4d6a
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-7c4d6a

Heavy Duty Bulkhead Connection with Elastomer Seal, Carbon Steel, 400 bar, DIN 2353 - Ideal for high-pressure applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Bulkhead Connection with Elastomer Seal BSP Parallel, made of durable Carbon Steel, is designed to withstand a Nominal Operating Pressure of 400 bar, ideal for high-pressure applications. Featuring a Tube Diameter of 16.0 mm and meeting DIN 2353 standards, this fitting ensures reliable performance and a secure seal. The Equipped B3 Ring enhances stability, making it a top choice for industrial and government installations.

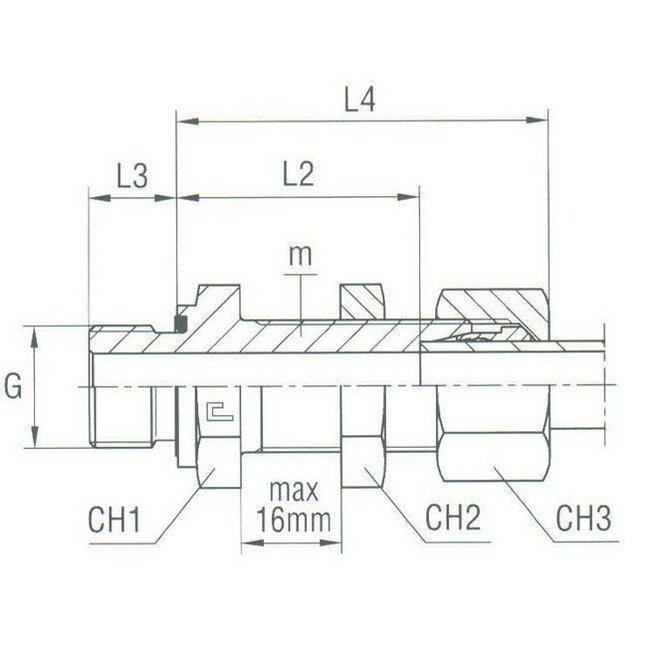

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

32 mm

Specifications Ch3

30 mm

Specifications G Thread Size

1/2

Specifications L2

45.5 mm

Specifications L3

14.0 mm

Specifications L4

64 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

24x1.5

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Heavy Duty Bulkhead Connection with Elastomer Seal BSP Parallel - Carbon Steel
