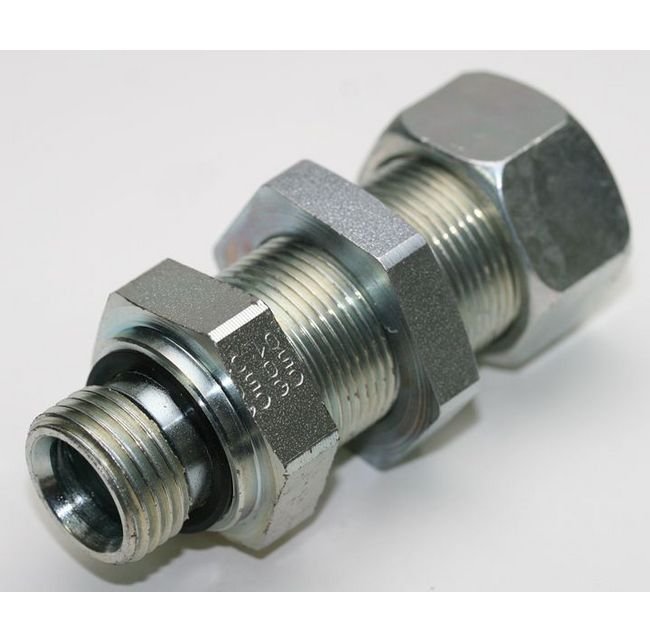

Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Equipped B3 Ring

Name: Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-e00e24
Price: 89.99 USD
Availability: OutOfStock

SKU:FIT-e00e24

Reliable Heavy Duty Bulkhead Connection with Elastomer Seal for industrial applications. Nominal Operating Pressure: 630 bar. DIN 2353 compliant.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Bulkhead Connection with Elastomer Seal is designed for industrial applications requiring a reliable and leak-free connection. With a Nominal Operating Pressure of 630 bar, this fitting is constructed from durable Carbon Steel, ensuring long-term performance. The male stud coupling features a straight design, L2 of 46 mm, and thread sizes of 22x1.5 for m-thread and 1/2 for G-thread. Compliant with DIN 2353 standards, this fitting guarantees quality and precision in every installation.

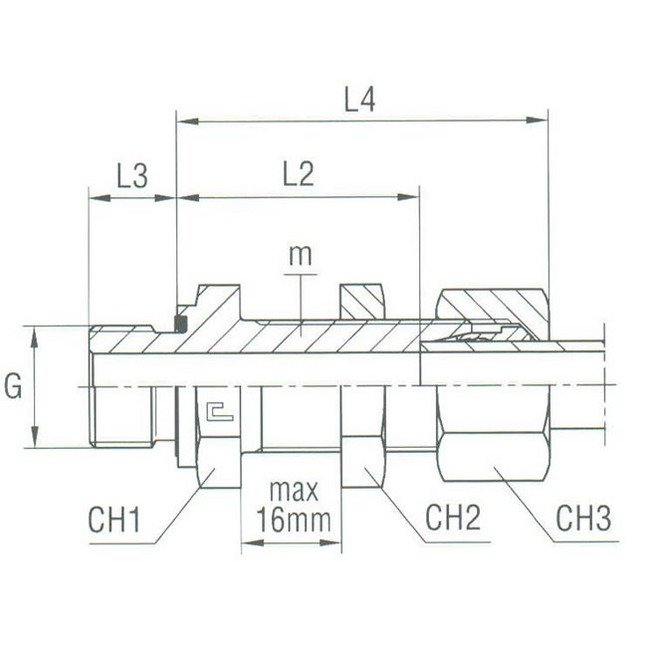

Product Specifications

Specifications Ch1

30 mm

Specifications Ch2

30 mm

Specifications Ch3

27 mm

Specifications G Thread Size

1/2

Specifications L2

46 mm

Specifications L3

14.0 mm

Specifications L4

64 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

14.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Heavy Duty Bulkhead Connection with Elastomer Seal, BSP Parallel - Equipped B3 Ring
