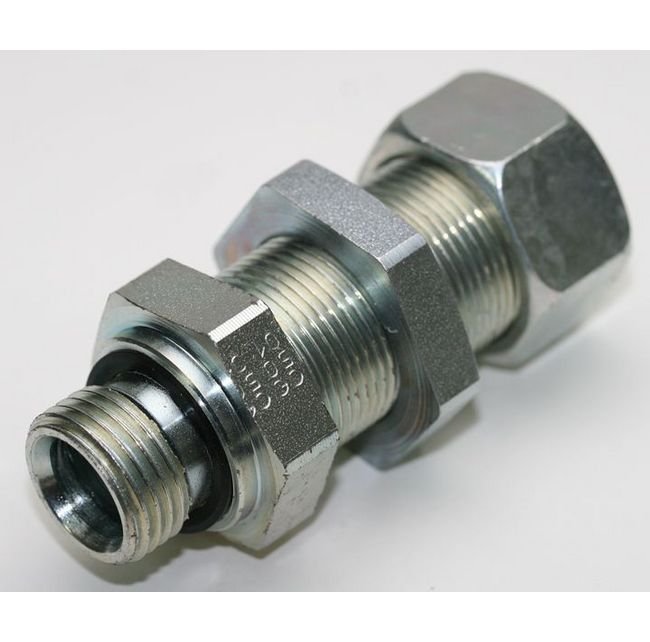

Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel - Equipped B4 Ring

Name: Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel - Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-104b8f
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-104b8f

Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel, Nominal Pressure: 630 bar, Carbon Steel, DIN 2353 Compliant

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

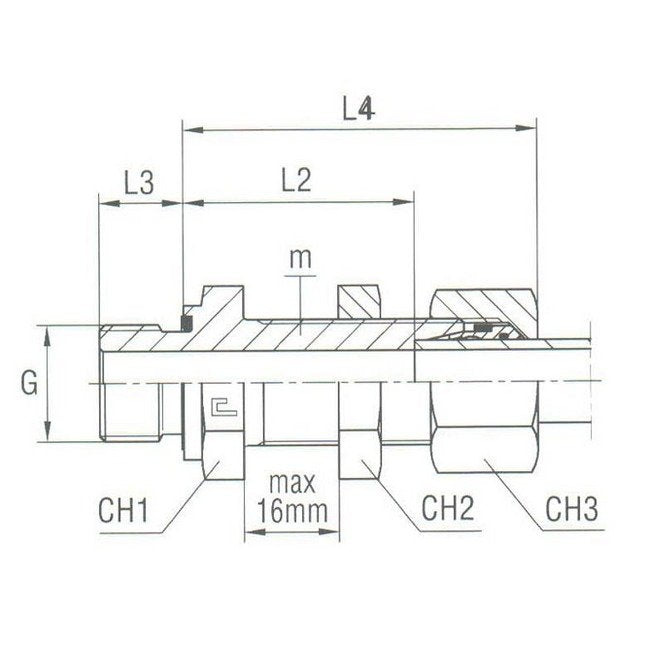

The Heavy Duty Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B4 Ring is designed for high-pressure applications, with a nominal operating pressure of 630 bar. Crafted from durable carbon steel, this fitting ensures reliable performance. Meeting DIN 2353 standards, it features precise tube diameter of 8.0 mm and threads sizes M16x1.5 / G1/4. With dimensions L2: 39.0 mm, L3: 12.0 mm, and L4: 54 mm, it offers a secure fit while providing superior sealing with elastomer material. Ideal for industrial and institutional use.

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

22 mm

Specifications Ch3

19 mm

Specifications G Thread Size

1/4

Specifications L2

39.0 mm

Specifications L3

12.0 mm

Specifications L4

54 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Heavy Duty Bulkhead Connection with Elastomer Seal - BSP Parallel - Equipped B4 Ring
