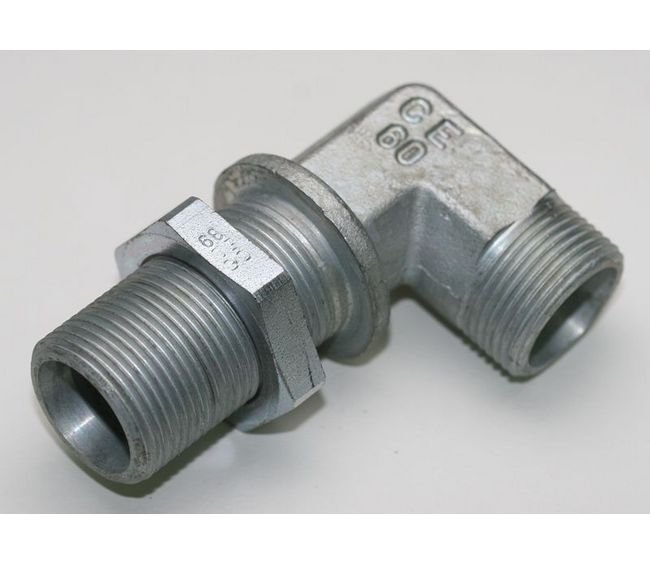

Heavy Duty Bulkhead Elbow - Carbon Steel Body
Heavy Duty Bulkhead Elbow - Carbon Steel Body
SKU:FIT-66f033
Heavy-duty carbon steel Bulkhead Elbow fitting meeting DIN 2353 standards for 10.0 mm tubes at 630 bar. Reliable and precise for industrial use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Bulkhead Elbow - Carbon Steel Body
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Bulkhead Elbow - Carbon Steel Body
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

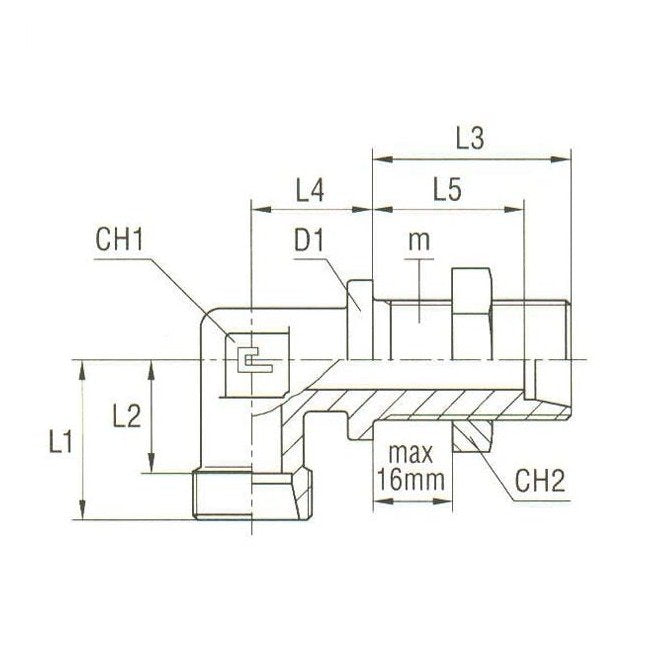

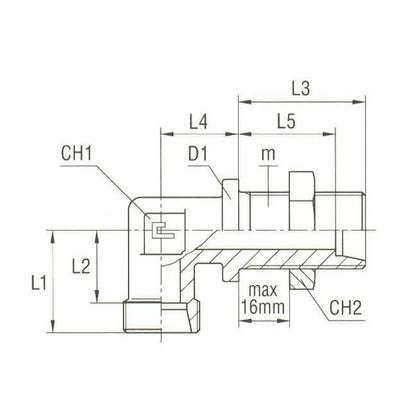

The Bulkhead Elbow - Body Only is a heavy-duty fitting made of carbon steel, designed for industrial applications requiring a reliable connection. With key specifications meeting DIN 2353 standards, including a tube diameter of 10.0 mm and a nominal operating pressure of 630 bar, this fitting ensures durability and performance under high pressures. The precise dimensions of L1: 25.0 mm, L2: 17.5 mm, L3: 37.0 mm, L4: 20 mm, L5: 29.5 mm, D1: 24 mm, CH1: 17.0 mm, and CH2: 24 mm make it suitable for various installations.
Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
24 mm
Specifications D1
24 mm
Specifications L1
25.0 mm
Specifications L2
17.5 mm
Specifications L3
37.0 mm
Specifications L4
20 mm
Specifications L5
29.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
