Heavy Duty Bulkhead Elbow - Equipped B4 Ring 14.0 mm, Carbon Steel
Heavy Duty Bulkhead Elbow - Equipped B4 Ring 14.0 mm, Carbon Steel
SKU:FIT-9cf83a
Heavy Duty Bulkhead Elbow - Equipped B4 Ring for high-pressure applications up to 630 bar. Carbon Steel, DIN 2353 compliant.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Heavy Duty Bulkhead Elbow - Equipped B4 Ring 14.0 mm, Carbon Steel
$25.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Bulkhead Elbow - Equipped B4 Ring 14.0 mm, Carbon Steel
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

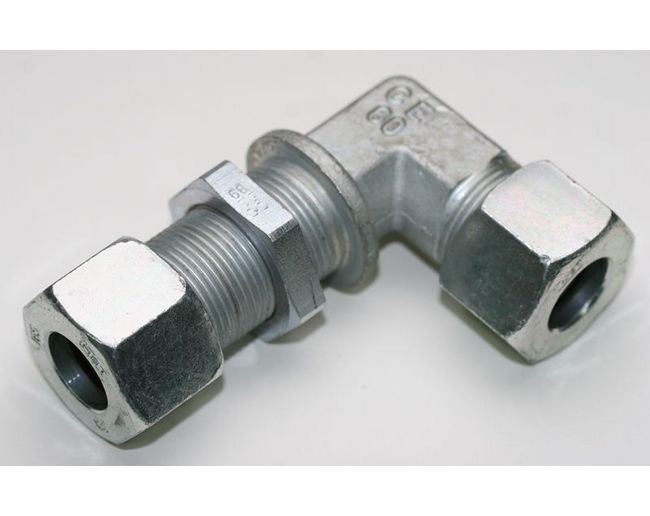

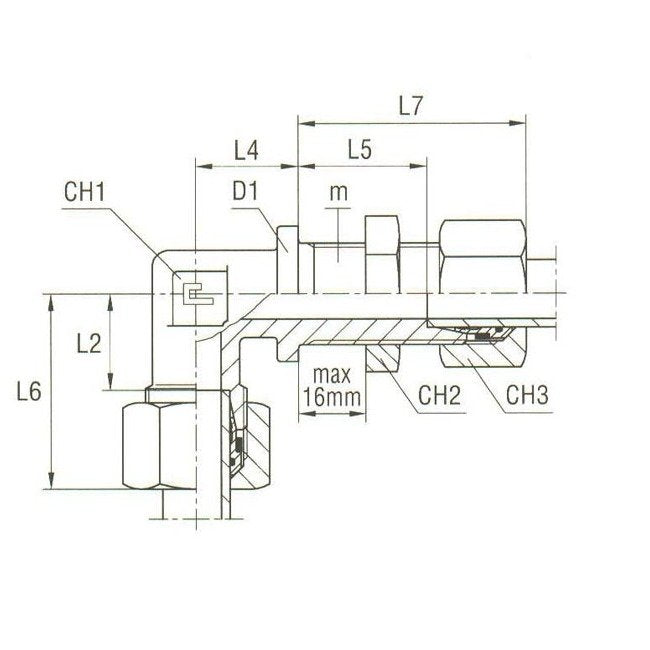

The Heavy Duty Bulkhead Elbow with Equipped B4 Ring is designed for robust industrial applications. Made of durable Carbon Steel, this fitting ensures reliable performance under high pressure, up to 630 bar. With precise dimensions meeting DIN 2353 standards, it features a 22x1.5mm threaded connection for secure installations. The Bulkhead Elbow's compact design, including L2: 22 mm, L4: 23 mm, L5: 32 mm, L6: 30 mm, L7: 50 mm, D1: 27 mm, CH1: 19.0 mm, CH2: 30 mm, CH3: 27 mm, makes it ideal for tight spaces while providing superior functionality.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
30 mm
Specifications Ch3
27 mm
Specifications D1
27 mm
Specifications L2
22 mm
Specifications L4
23 mm
Specifications L5
32 mm
Specifications L6
30 mm
Specifications L7
50 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
