Heavy Duty Bulkhead Elbow with B3 Ring - DIN 2353 Compression Fitting
Heavy Duty Bulkhead Elbow with B3 Ring - DIN 2353 Compression Fitting
SKU:FIT-157538
High-quality Carbon Steel Bulkhead Elbow - DIN 2353, ideal for heavy-duty applications up to 400 bar pressure.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Bulkhead Elbow with B3 Ring - DIN 2353 Compression Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Bulkhead Elbow with B3 Ring - DIN 2353 Compression Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Bulkhead Elbow with B3 Ring is crafted from durable Carbon Steel, designed for high-pressure applications up to 400 bar. With precise fittings to accommodate a 30.0 mm tube diameter, it ensures optimal performance. Meeting DIN 2353 standards, this fitting guarantees reliability and longevity in industrial settings.

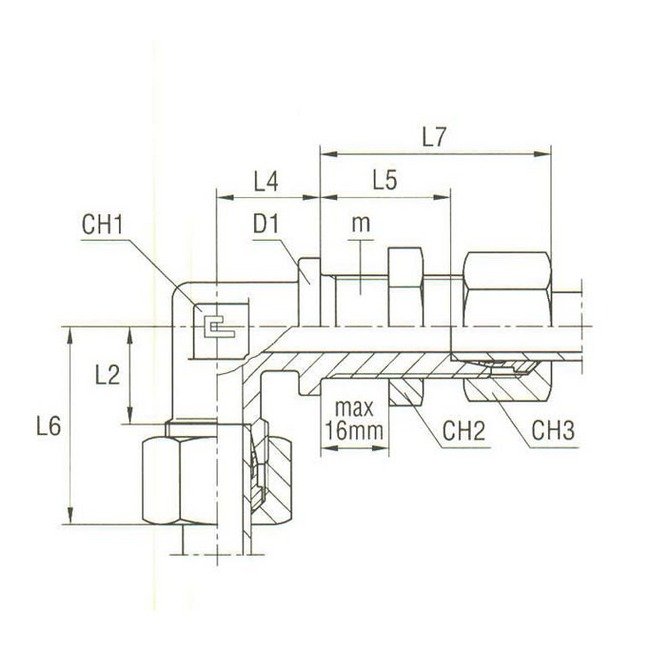

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
50 mm
Specifications Ch3
50 mm
Specifications D1
50 mm
Specifications L2
35.5 mm
Specifications L4
39.0 mm
Specifications L5
37.5 mm
Specifications L6
49 mm
Specifications L7
64 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
