Heavy Duty Bulkhead Elbow with Equipped B3 Ring

Name: Heavy Duty Bulkhead Elbow with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-988f7e
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-988f7e

Premium Heavy Duty Bulkhead Elbow for high-pressure applications, Carbon Steel construction, DIN 2353 compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

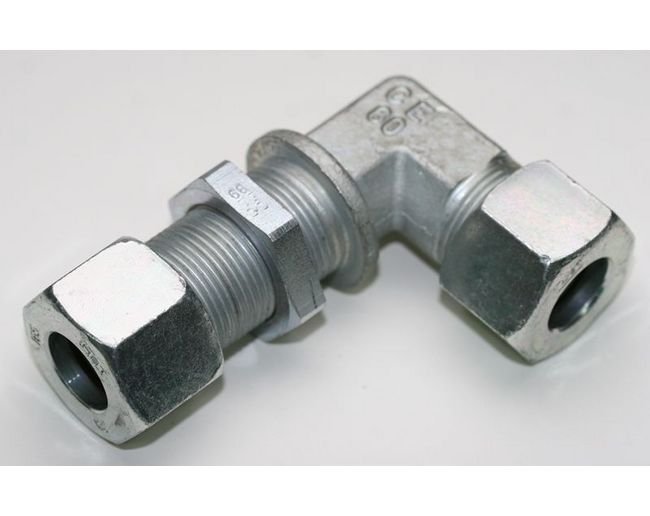

The Heavy Duty Bulkhead Elbow with Equipped B3 Ring is a top-of-the-line fitting designed for demanding industrial applications. Constructed from high-grade Carbon Steel, this fitting ensures durability and reliability even under extreme pressure conditions up to 630 bar. With a Tube Diameter of 12.0 mm and meeting DIN 2353 standards, this Bulkhead Elbow guarantees precision and performance. Its compact design and precise dimensions including L2: 21.5 mm, L4: 21 mm, and D1: 27 mm make it easy to install and integrate seamlessly into your system.

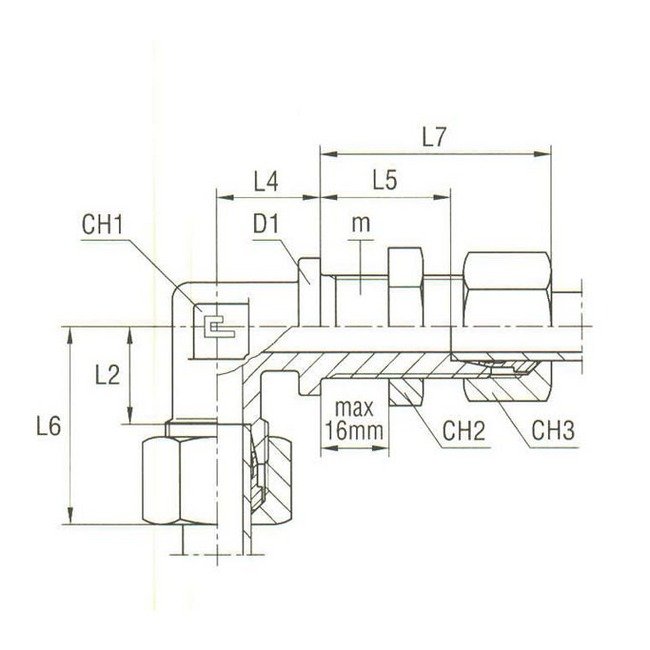

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

27 mm

Specifications Ch3

24 mm

Specifications D1

27 mm

Specifications L2

21.5 mm

Specifications L4

21 mm

Specifications L5

30.5 mm

Specifications L6

29 mm

Specifications L7

47 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
