Heavy-Duty C-Type Clamp with Wide Throat
Heavy-Duty C-Type Clamp with Wide Throat
SKU:PIP-3412f2
Heavy-duty C-Type Clamp with wide throat for secure attachment to various structures. Meets multiple industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy-Duty C-Type Clamp with Wide Throat
$24.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty C-Type Clamp with Wide Throat
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

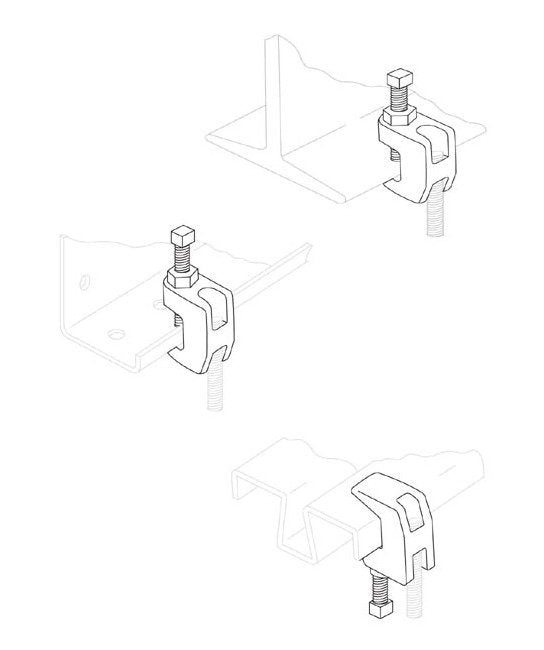

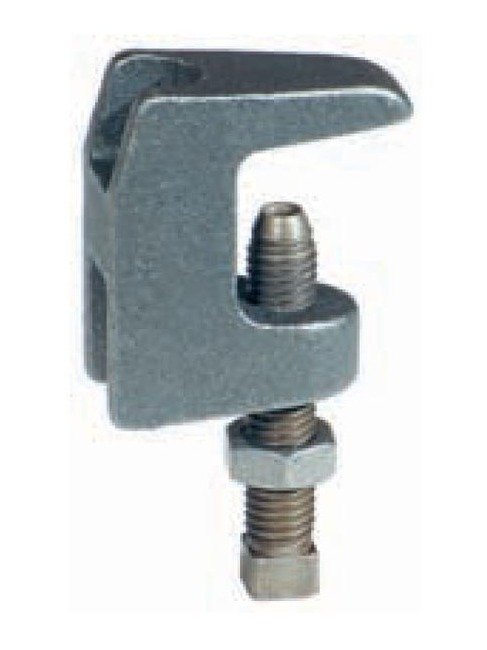

The Heavy-Duty C-Type Clamp with Wide Throat is a versatile solution for pipe and tube hangers, suitable for both roof installations and structural shapes. Made of durable ductile and malleable iron with a galvanized finish, it features a wider throat for up to 1 1/4" flange thickness. This clamp meets Federal Specification A-A-1192A (Type 19 & 23), WW-H-171-E (Type 23), MSS-SP-69 (Type 19 & 23), UL, ULC, and FM standards, ensuring quality and reliability in any application.
Product Specifications

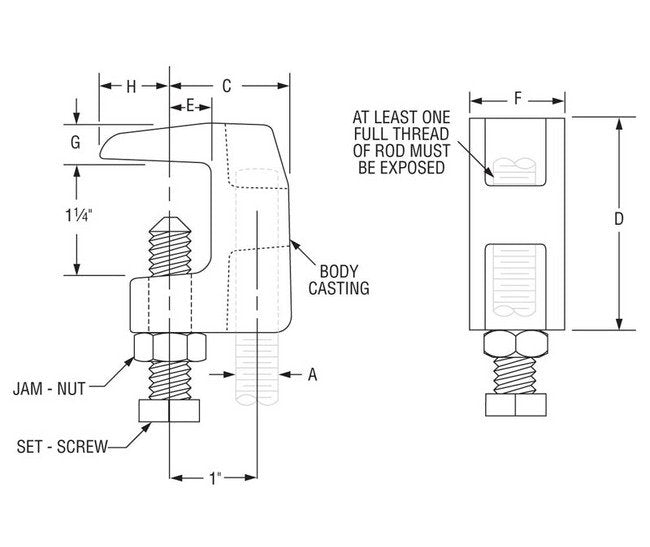

Specifications Dimension C
1 5/16 inches
Specifications Dimension D
2 5/32 inches
Specifications Dimension E
9/16 inches
Specifications Dimension F
13/16 inches
Specifications Dimension G
3/8 inches
Specifications Dimension H
5/8 inches
Specifications Finish
Galvanized | Plain
Specifications Material
Ductile iron | Malleable Iron
Specifications Maximum Load Bottom
250 lbs
Specifications Maximum Load Top
500 lbs
Specifications Maximum Temperature
450 °F
Specifications Rod Size A
3/8 inches
Specifications Set Screw Size
3/8
Specifications Weight
0.41 lbs
