Heavy Duty Carbon Steel Bulkhead Connection BSP Parallel
Heavy Duty Carbon Steel Bulkhead Connection BSP Parallel
SKU:FIT-915471
High-quality Carbon Steel Bulkhead Connection for secure industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Bulkhead Connection BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Bulkhead Connection BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

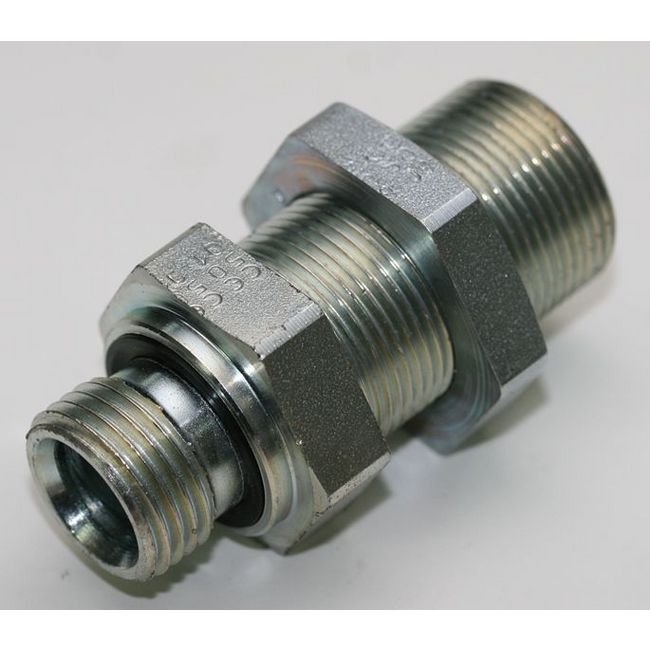

The Heavy Duty Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel provides exceptional durability with a nominal operating pressure of 315 bar. Constructed from high-quality carbon steel, this fitting ensures reliable performance. With a tube diameter of 38.0 mm and meeting DIN 2353 standards, it is ideal for demanding industrial applications requiring secure connections.

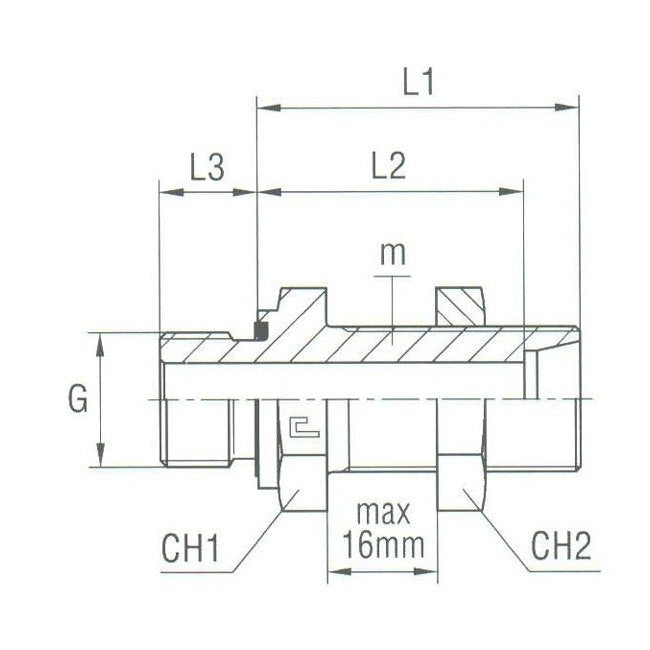

Product Specifications
Specifications Ch1
60 mm
Specifications Ch2
65 mm
Specifications G Thread Size
1 1/2
Specifications L1
72.0 mm
Specifications L2
56 mm
Specifications L3
22.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
