Heavy Duty Carbon Steel Bulkhead Elbow - 12.0mm - DIN 2353 Compliant

Name: Heavy Duty Carbon Steel Bulkhead Elbow - 12.0mm - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-d6f80f
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-d6f80f

High-performance 12.0mm Bulkhead Elbow - Heavy Duty Carbon Steel - DIN 2353 Compliant, ideal for industrial use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Carbon Steel Bulkhead Elbow is designed for industrial applications, featuring a tube diameter of 12.0mm and a nominal operating pressure of 630 bar. Constructed with precision to meet DIN 2353 compression fittings standards, this elbow ensures reliable performance, durability, and seamless connectivity in demanding environments, making it ideal for institutional and government procurement needs.

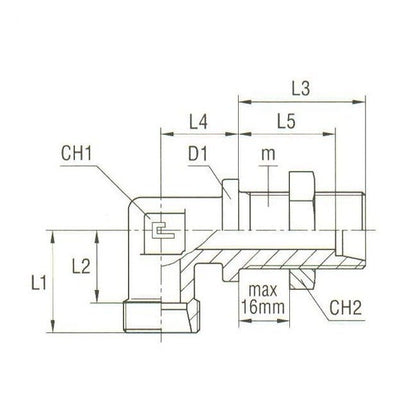

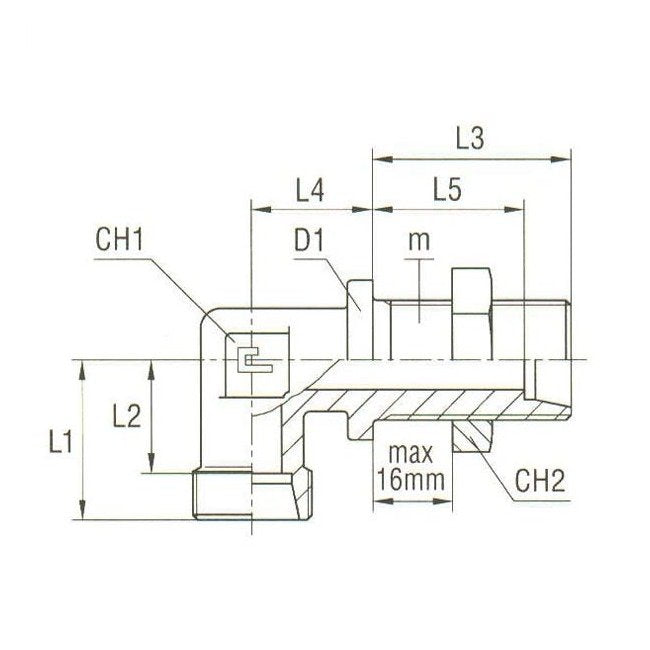

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

27 mm

Specifications D1

27 mm

Specifications L1

29.0 mm

Specifications L2

21.5 mm

Specifications L3

38.0 mm

Specifications L4

21 mm

Specifications L5

30.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
