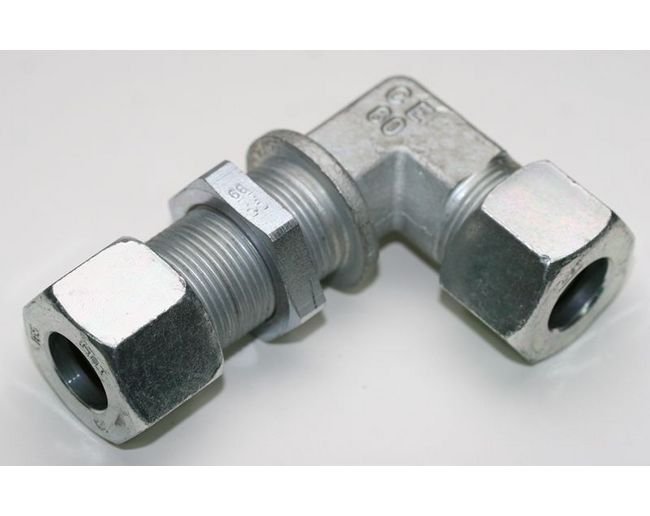

Heavy Duty Carbon Steel Bulkhead Elbow with DIN 2353 Compression, 6.0mm Tube Diameter

Name: Heavy Duty Carbon Steel Bulkhead Elbow with DIN 2353 Compression, 6.0mm Tube Diameter
Brand: World Wide Metric, Inc.
SKU: FIT-abdbe1
Price: 34.99 USD
Availability: OutOfStock

SKU:FIT-abdbe1

High-pressure Bulkhead Elbow with Carbon Steel Construction and DIN 2353 Compliance

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

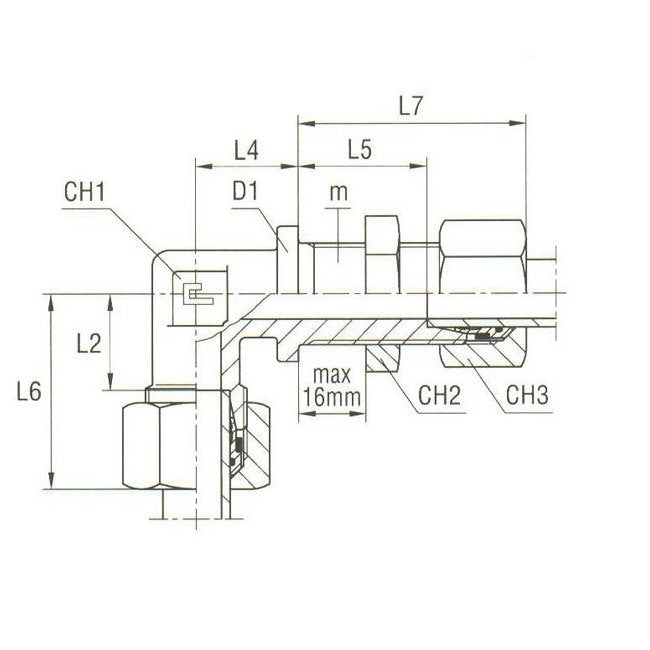

The Heavy Duty Bulkhead Elbow - Equipped B4 Ring is designed for industrial applications requiring high pressure handling. Made from durable carbon steel, this fitting ensures reliable performance at a nominal operating pressure of 630 bar. With precise specifications like 14x1.5 thread size and compliance with DIN 2353 standards, it guarantees secure and leak-free connections. Its compact design, measuring L2: 16.0mm, L4: 17mm, L5: 29mm, L6: 23mm, L7: 44mm, D1: 19mm, CH1: 12mm, CH2: 19.0mm, and CH3: 17mm, makes it ideal for tight spaces, providing efficient solutions for your hydraulic system needs.

Product Specifications

Specifications Ch1

12 mm

Specifications Ch2

19.0 mm

Specifications Ch3

17 mm

Specifications D1

19 mm

Specifications L2

16.0 mm

Specifications L4

17 mm

Specifications L5

29 mm

Specifications L6

23 mm

Specifications L7

44 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm
