Heavy Duty Carbon Steel Bulkhead Elbow with Equipped B4 Ring

Name: Heavy Duty Carbon Steel Bulkhead Elbow with Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-21be56
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-21be56

High-quality Heavy Duty Carbon Steel Bulkhead Elbow for industrial applications, meets DIN 2353 standards

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Carbon Steel Bulkhead Elbow with Equipped B4 Ring is designed to meet the rigorous demands of industrial applications. Constructed with high-quality carbon steel, this fitting ensures durability and reliability under heavy operating pressures up to 315 bar. With precise specifications meeting DIN 2353 standards, it features a tube diameter of 38.0mm, 52x2 thread size, and various dimensions to fit seamlessly into your system. Benefit from its robust build, corrosion resistance, and secure connections for optimal performance in critical environments.

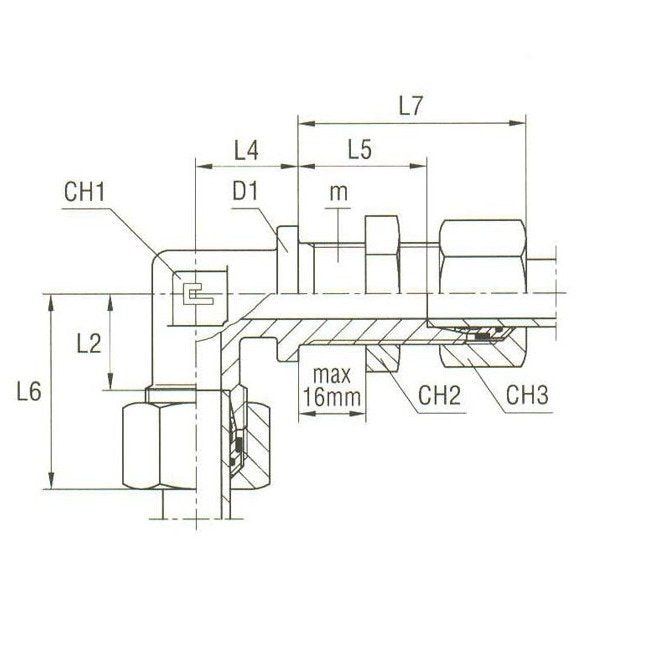

Product Specifications

Specifications Ch1

50 mm

Specifications Ch2

65 mm

Specifications Ch3

60 mm

Specifications D1

60 mm

Specifications L2

41.0 mm

Specifications L4

43.0 mm

Specifications L5

37 mm

Specifications L6

57 mm

Specifications L7

68 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

52x2

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

38.0 mm

Heavy Duty Carbon Steel Bulkhead Elbow with Equipped B4 Ring
