Heavy Duty Carbon Steel Bulkhead Union - 10.0mm DIN 2353 Compression Fitting
Heavy Duty Carbon Steel Bulkhead Union - 10.0mm DIN 2353 Compression Fitting
SKU:FIT-bd637c
High-pressure, DIN 2353 compliant Carbon Steel Bulkhead Union for secure connections up to 630 bar.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Bulkhead Union - 10.0mm DIN 2353 Compression Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Bulkhead Union - 10.0mm DIN 2353 Compression Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Carbon Steel Bulkhead Union with a 10.0mm tube diameter and 18x1.5 thread size is engineered to withstand pressures up to 630 bar. With precise dimensions meeting DIN 2353 standards, this fitting ensures a secure, leak-free connection. Its compact design, featuring specific lengths and channel dimensions, offers easy installation and superior performance, making it ideal for industrial applications.

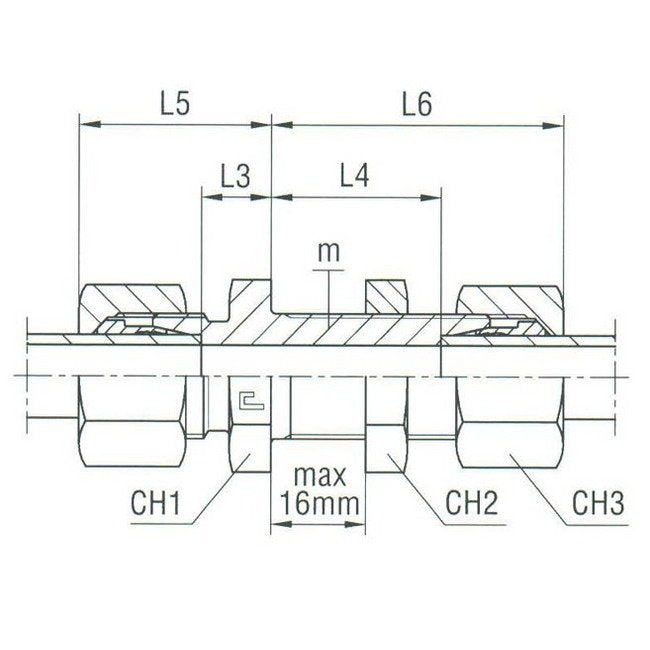

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications L3
14.5 mm
Specifications L4
29.5 mm
Specifications L5
31 mm
Specifications L6
46 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
