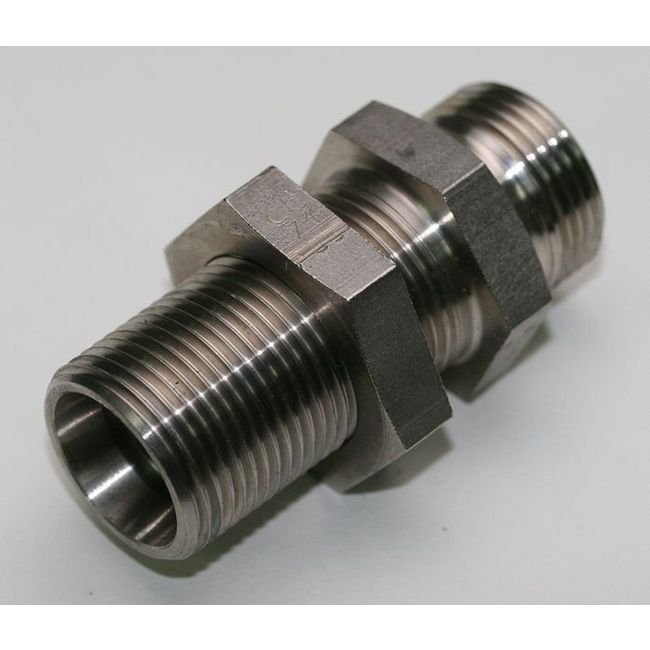

Heavy Duty Carbon Steel Bulkhead Union Body, 12.0mm Tube Dia

Name: Heavy Duty Carbon Steel Bulkhead Union Body, 12.0mm Tube Dia
Brand: World Wide Metric, Inc.
SKU: FIT-866bd6
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-866bd6

Heavy Duty Bulkhead Union Body, Carbon Steel, DIN 2353 Compliant

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

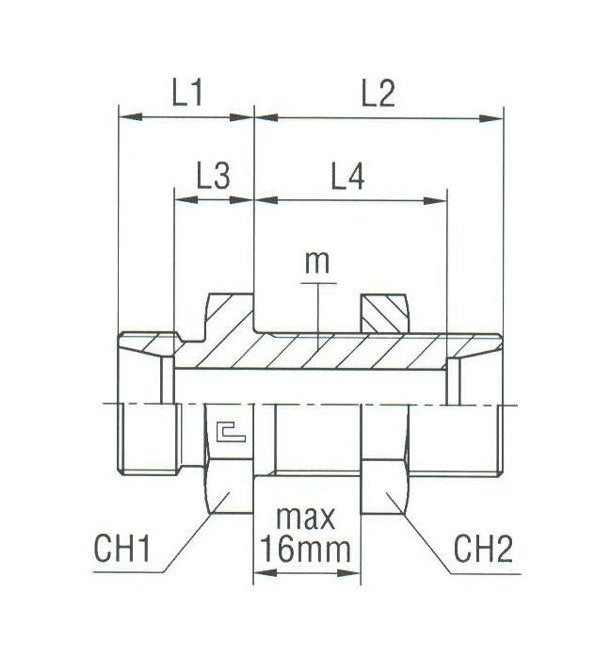

The Bulkhead Connection Body Only is a heavy-duty fitting constructed from carbon steel, designed for 12.0mm tube diameter applications. With a nominal operating pressure of 630 bar, this compression fitting meets DIN 2353 standards. Its robust build, with precise dimensions of L1: 22mm, L2: 38.0mm, L3: 14.5mm, L4: 30.5mm, CH1: 27mm, CH2: 27mm, ensures reliable performance in demanding environments.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications L1

22 mm

Specifications L2

38.0 mm

Specifications L3

14.5 mm

Specifications L4

30.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
