Heavy Duty Carbon Steel Bulkhead Union - Body Only
Heavy Duty Carbon Steel Bulkhead Union - Body Only
SKU:FIT-90042e
Reliable Heavy Duty Carbon Steel Bulkhead Union for high-pressure applications, meeting DIN 2353 standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Carbon Steel Bulkhead Union - Body Only
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Carbon Steel Bulkhead Union - Body Only
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

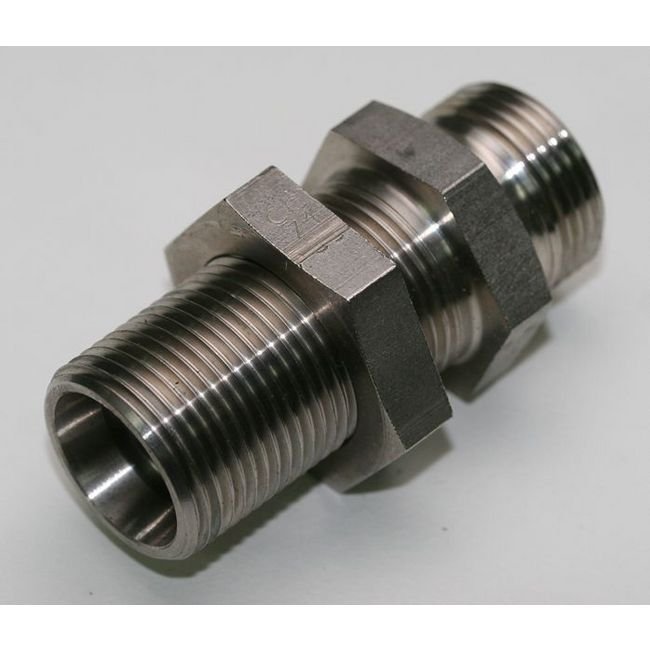

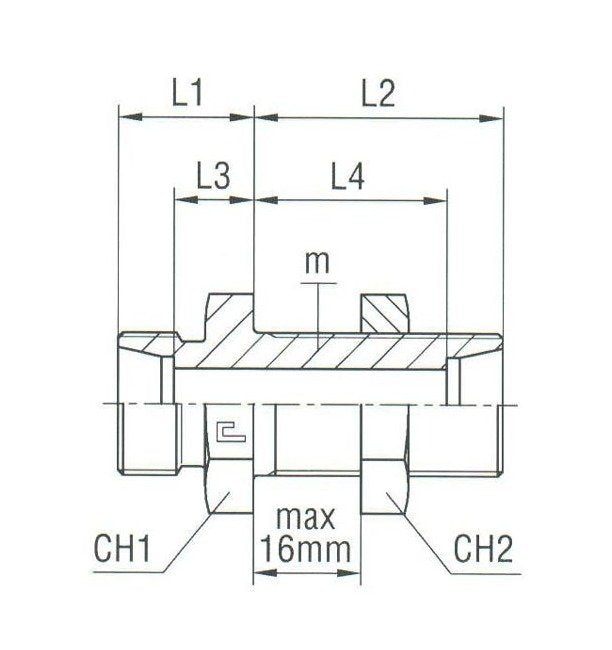

The Heavy Duty Carbon Steel Bulkhead Union Body is designed for reliability and durability in high-pressure applications, meeting DIN 2353 standards. Constructed from carbon steel, this fitting ensures long-term performance under pressure up to 630 bar. With precise tube diameter of 10.0 mm and 18x1.5 thread size, this bulkhead union guarantees secure connections. The compact design with specific dimensions (L1: 22mm, L2: 37.0mm, L3: 14.5mm, L4: 29.5mm, CH1: 24mm, CH2: 24mm) makes installations efficient and space-saving.
Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications L1
22 mm
Specifications L2
37.0 mm
Specifications L3
14.5 mm
Specifications L4
29.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
